PTR Hartmann 54791040421F Spring-loaded Terminal 4 Pins Basalt Grey

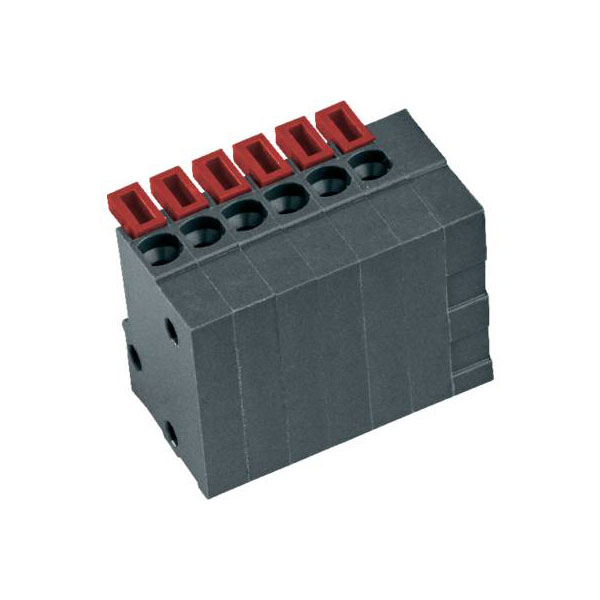

Image Representative of Range

PTR Hartmann 54791040421F Spring-loaded Terminal 4 Pins Basalt Grey

PTR
Order Code:

06-2911

Brand: PTR MPN: 54791040421F EAN-13: 2050001585189
Qty Unit Price (Ex VAT)
10+ £0.636
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
184 in stock, despatched in 4 working days

The PTR Hartmann 54791040421F is a spring-loaded terminal block designed for printed circuit boards, featuring four pins and supporting cables up to 0.75 mm². This basalt grey connector is ideal for secure, reliable electrical connections in various electronic and industrial applications. Its compact and effective design makes it suitable for use in limited space environments.
No. of Ways 4
No. of Levels 1
Voltage Rating 150V
Current Rating 6A
AWG (min.) 26
AWG max. 18
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Factory colour Basalt grey
Height 12.70mm
Length 12.60mm
Min. stripping length 10mm
Misc Attribute AKZ4791/4KD-2.54-V
Pins per row 4
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Width 17.10mm
Wire protection Yes
