PTR Hartmann 54791020422F Spring-loaded Terminal 0.75mm² 2 Pins Basalt Grey

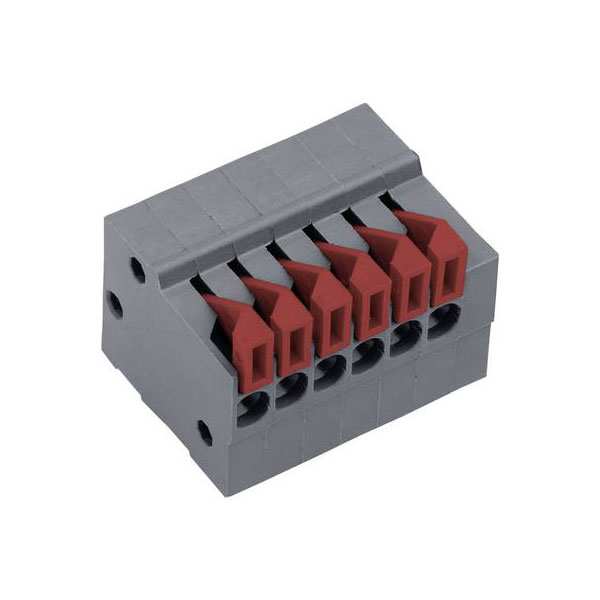

Image Representative of Range

PTR Hartmann 54791020422F Spring-loaded Terminal 0.75mm² 2 Pins Basalt Grey

PTR
Order Code:

06-2908

Brand: PTR MPN: 54791020422F EAN-13: 2050001585257
Qty Unit Price (Ex VAT)
20+ £0.338
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
166 in stock, despatched in 4 working days

The PTR Hartmann spring-loaded terminal 54791020422F is a two-pin, basalt grey component for PCB connections. Designed with a capacity of 0.75 mm², it offers secure and reliable connections for electronic applications. Ideal for use in various printed circuit boards, it ensures optimal performance through its durable design.
Pitch 2.54mm
No. of Ways 2
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 20 AWG
Wire Termination Screwless
AWG (min.) 26
AWG max. 18
Colour Grey
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Current Rating 6A
Factory colour Basalt grey
Height 13.70mm
Length 7.62mm
Min. stripping length 10mm
Misc Attribute AKZ4791/2KD-2.54-H
No. of Levels 1
Pins per row 2
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Voltage Rating 150V
Width 16.20mm
Wire protection Yes
