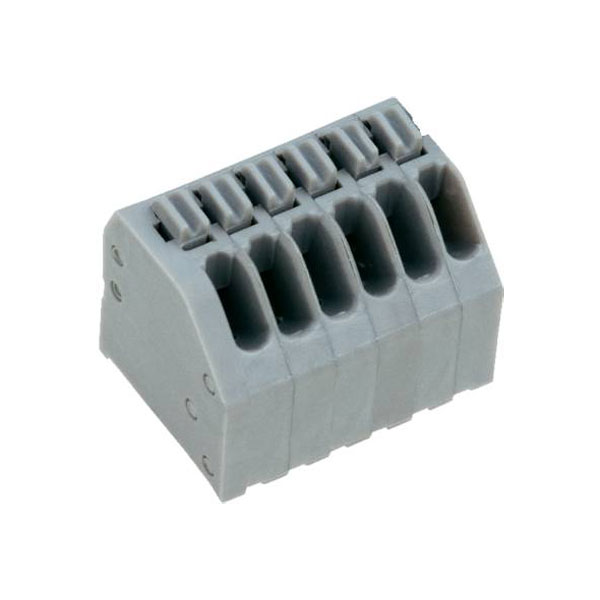

PTR Hartmann 54191060051E Spring-loaded Terminal 0.75mm² 6 Pins Pebble Grey

Image Representative of Range

PTR Hartmann 54191060051E Spring-loaded Terminal 0.75mm² 6 Pins Pebble Grey

PTR
Order Code:

06-2898

Brand: PTR MPN: 54191060051E EAN-13: 2050001585110
Qty Unit Price (Ex VAT)
10+ £0.458
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
99 in stock, despatched in 4 working days

PTR Hartmann manufactures the 54191060051E spring-loaded terminal, designed with 6 pins and a 0.75 mm² capacity, finished in pebble grey. This PCB connector is ideal for secure connections on a printed circuit board, featuring a spring mechanism for reliable electrical contact. Often used in electronic assembly, the terminal block ensures efficient and stable connections in various electrical applications.
Pitch 2.5mm
No. of Ways 6
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 20 AWG
Wire Termination Screwless
AWG (min.) 26
AWG max. 20
Colour Grey
Connector orientation At an angle (to the PCB)
Contact Material Bronze
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.50mm
Current Rating 2A
Factory colour Pebble grey
Height 16.50mm
Length 12.00mm
Min. stripping length 9mm
Misc Attribute AK4191/6KDVP-2.5
No. of Levels 1
Pins per row 6
Series AK4191
Stripping length (max.) 9mm
Type Spring-loaded terminal
Voltage Rating 300V
Width 16.60mm
Wire protection Yes
