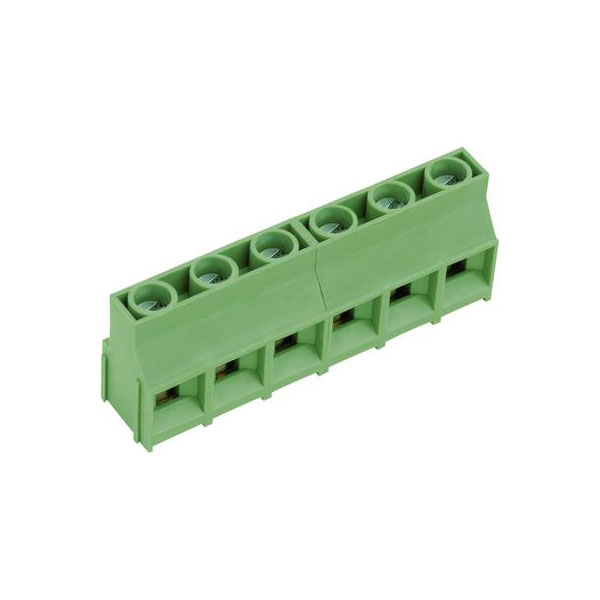

PTR Hartmann 50841060201D Screw Terminal 4.00mm² 6 Pins Green 1pc

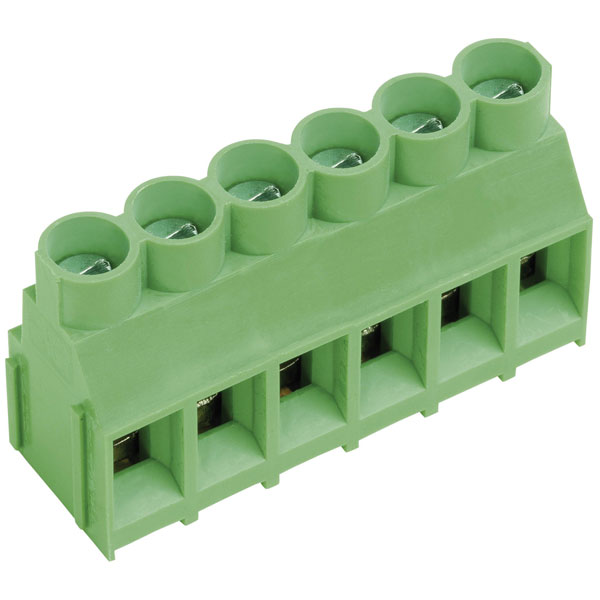

Image Representative of Range

PTR Hartmann 50841060201D Screw Terminal 4.00mm² 6 Pins Green 1pc

PTR
Order Code:

06-2830

Brand: PTR MPN: 50841060201D EAN-13: 2050001585028
Qty Unit Price (Ex VAT)
5+ £1.24
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
46 available to back orderBack-order availability date - 09/01/2026

PTR Hartmann's 50841060201D is a green screw terminal designed for 4.00 mm² connections with six pins. It is typically used for connecting wires to printed circuit boards, offering secure and reliable connections. This PCB connector is ideal for industrial and electronic applications where robust electrical connections are required.
No. of Ways 6
No. of Levels 1
Voltage Rating 600V
Current Rating 30A
Actuation direction Perpendicular (to the PCB)
AWG (min.) 28
AWG max. 10
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 4.00mm²
Cross section (flexible) (min.) 0.20mm²
Cross section (inflexible) (max.) 6.00mm²
Cross section (inflexible) (min.) 0.20mm²
CS 9.52mm
Factory colour Green
Height 25.90mm
Length 12.50mm
Min. stripping length 7mm
Misc Attribute AKZ841/6-9.52-V
Pins per row 6
Series AKZ841
Stripping length (max.) 7mm
Type Screw terminal
Width 57.62mm
Wire protection Yes
