PTR Hartmann 50692040021E Screw Terminal 4 Pins 0.75mm² Green

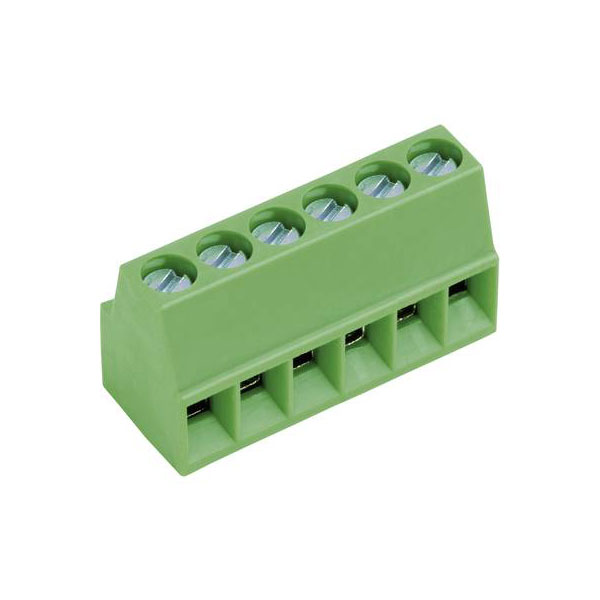

Image Representative of Range

PTR Hartmann 50692040021E Screw Terminal 4 Pins 0.75mm² Green

PTR
Order Code:

06-2821

Brand: PTR MPN: 50692040021E EAN-13: 2050001584649
Qty Unit Price (Ex VAT)
10+ £0.477
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,324 in stock, despatched in 4 working days

The PTR Hartmann 50692040021E is a screw terminal block designed for printed circuit boards, accommodating a wire size of 0.75 mm² with four pins. It features a green housing and is suited for secure electrical connections in electronic assemblies. Typically, this component is used for safely connecting wiring in various electronic devices and equipment.
No. of Ways 4
No. of Levels 1
Voltage Rating 150V
Current Rating 7A
Actuation direction Perpendicular (to the PCB)
AWG (min.) 30
AWG max. 18
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Factory colour Green
Height 10.56mm
Length 6.50mm
Min. stripping length 4mm
Misc Attribute AKZ692/4-2.54-V-GRÜN
Pins per row 4
Series AKZ692
Stripping length (max.) 4mm
Type Screw terminal
Width 12.00mm
Wire protection Yes
