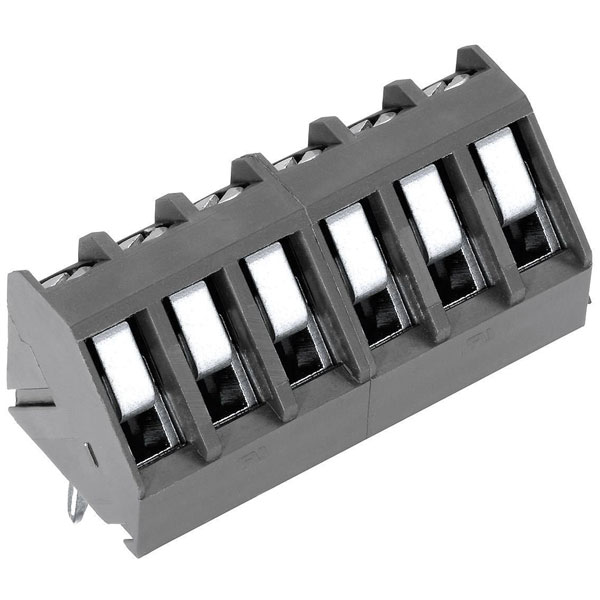

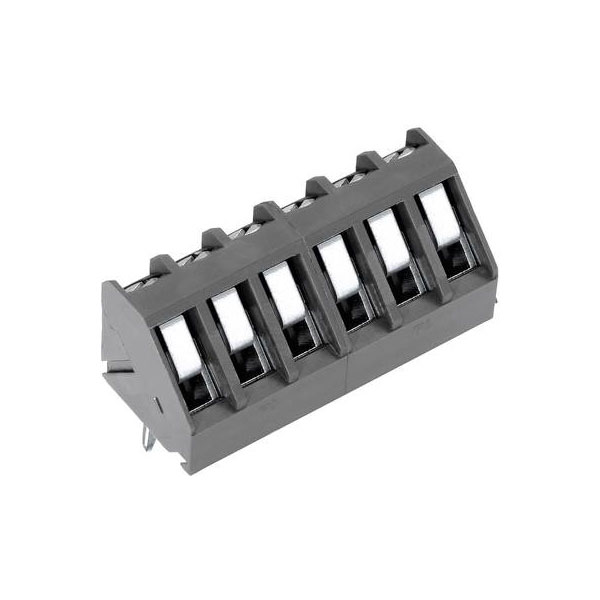

PTR Hartmann 50300060041F Screw Terminal 1.50mm² 6 Pins Grey 1pc

Image Representative of Range

PTR Hartmann 50300060041F Screw Terminal 1.50mm² 6 Pins Grey 1pc

PTR
Order Code:

06-2817

Brand: PTR MPN: 50300060041F EAN-13: 2050001584717
Qty Unit Price (Ex VAT)
5+ £0.835
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
335 in stock, despatched in 4 working days

PTR Hartmann manufactures the 50300060041F, a grey screw terminal block with six pins, designed for a cable cross-section of 1.50 mm². This PCB connector is ideal for securely connecting wires to a printed circuit board. It's commonly used in electrical and electronic applications requiring reliable wire connections.
Pitch 5mm
No. of Ways 6
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 22 to 12AWG
Wire Termination Rising Clamp
Actuation direction At an angle (to the PCB)
AWG (min.) 22
AWG max. 12
Colour Grey
Connector cross section Up to 2.5mm²
Connector orientation At an angle (to the PCB)
Contact Material Brass
Cross Section Up to 2.5mm²
Cross section (flexible) (max.) 1.50mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 2.50mm²
Cross section (inflexible) (min.) 0.14mm²
CS 5mm
Current Rating 24 A/15A
Factory colour Grey
Height 17.00mm
Length 12.50mm
Material (details) PA, UL94 V-0
Min. stripping length 7mm
Misc Attribute AK300/6-5.0
No. of Levels 1
Pins per row 6
Series AK(Z)300
Stripping length (max.) 7mm
Type Screw terminal
Voltage Rating 300V
Width 30.60mm
Wire protection Yes
