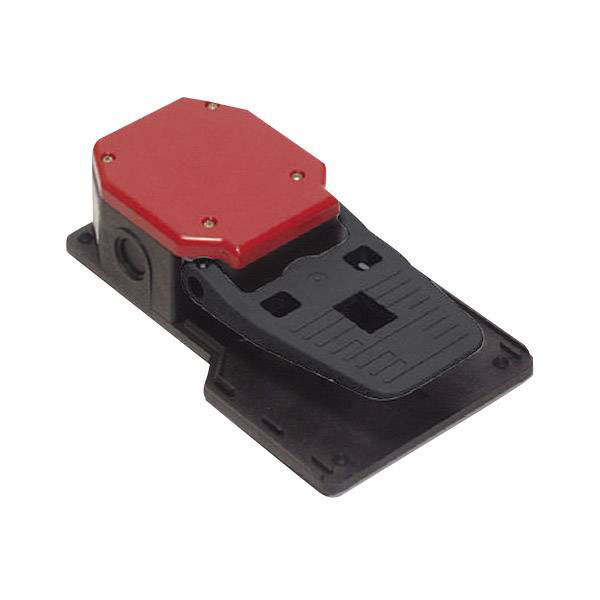

Pizzato Elettrica PA20301-M2 Foot Switch 250V 6A IP65 Robust Housing

Pizzato Elettrica
Standard range
Order Code:

12-7702

Brand: Pizzato Elettrica MPN: PA 20301-M2 EAN-13: 8018851133510
Qty Unit Price (Ex VAT)
1+ £36.64
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
11 in stock, despatched in 4 working days

Pizzato Elettrica manufactures the PA 20301-M2 foot switch, which is IP65 rated and designed for use with 250 V AC, featuring a 6 A capacity with one pedal and dual 1NO+1NC contacts. This switch is ideal for applications requiring hands-free operation and safety in industrial environments. Typical uses include machinery control and emergency stop functions, where durability and reliability are paramount.
Type Foot switch
Actuating force 16N
Casing Without Pedal protection
Casing/button colour Red
Connection Screws
Functions momentary
IP rating IP65
Material Plastic
Material (details) Housing of Techno polymer
Max. temperature +80°C
Min. temperature -25°C
Misc Attribute 1 creeping contact (1 Ö / 1 S)
Misc Attribute 2 PA 20301-M2
Operation type 1-pedal
RoHS-compliant Yes
Switch position 1 x Off/(On)
Switching capacity 400 V/AC/4 A, 500 V/AC/1 A, UL US 250 V/AC/6 A, 24 V/DC/6 AA
Switching Current 6A
Switching current (max.) 6A
Switching voltage 250V AC
Temperature range -25 - +80°C
Thread Size M20
