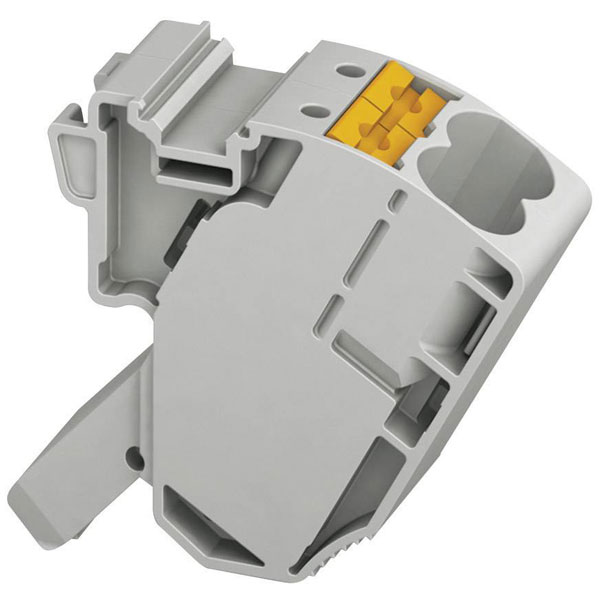

Phoenix Contact 3260145 PTPOWER95 clip Terminal 18.5mm grey 1pc

The Phoenix Contact 3260145 Clip terminal is a grey, 18.5 mm quick-connect designed for efficient switchboard connections. Manufactured by Phoenix Contact, this terminal ensures reliable continuity and is commonly used in industrial and electrical panel assemblies. Ideal for serial and switchboard terminal applications, it supports streamlined wiring in complex systems.

No. of Rows	1
Current Rating	57A
Colour	Grey
Wire Gauge (AWG)	8 AWG
Wire Gauge (mm²)	16mm²
AWG (min.)	20
Clamp width	18.5mm
Connectable	N/A
Connectable conductor cross section	10 - 10mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 10mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 10mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.5 - 16mm²
Connection	Quick-connect
Contamination level	3
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Dim	(L x W x H) 35 x 18.5 x 34.7 mm
Flammability Rating	V0
Height	34.7mm
Industrial packaging	No
Insulation	PA
Insulation class	I
Insulation Material	PA
Length	35mm
Misc Attribute	AGK 10-PTPOWER
Model	N/A
Nominal Voltage	1500V
Number of Pins	2
Number of Poles	N/A
Rated current In	N/AA
Rated voltage	N/AV
Stripping length (max.)	18mm
Total number of poles (without ground contact)	N/A
Type of electric connection	N/A
Width	18.5mm
