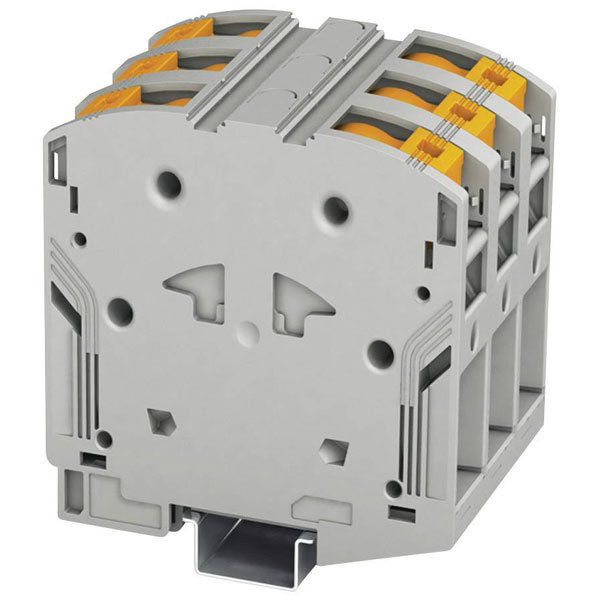

Phoenix Contact offers the 3260109 Continuity, a 75 mm quick-connect serial terminal, in grey. This switchboard terminal enhances efficient electrical connections, ensuring reliable continuity. It's typically used in electrical switchboards and control panels.
| Type |
Continuity |
| No. of Ways |
2 |
| No. of Levels |
1 |
| Termination |
Quick-Connect |
| Width |
75mm |
| Wire Gauge (mm²) |
95mm² |
| AWG (min.) |
4 |
| Clamp width |
75mm |
| Closing plate required |
false |
| Colour |
Grey |
| Connectable conductor cross section fine-strand with cable end sleeve |
25 - 25mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
25 - 95mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
25 - 95mm² |
| Connection |
Quick-connect |
| Contamination level |
3 |
| Cross section (flexible) (min.) |
25mm² |
| Cross section (inflexible) (min.) |
25mm² |
| Current Rating |
232A |
| Depth |
108.7mm |
| Dim |
(L x W x H) 105.5 x 75 x 108.7 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
108.7mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Insulation |
PA |
| Insulation class |
I |
| Internally connected stages |
true |
| Length |
105.5mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
3 |
| Misc Attribute |
PTPOWER 95-3L |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
1500V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
232A |
| Rated voltage |
1000V |
| Stripping length (max.) |
40mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Wire Gauge (AWG) |
3 |
