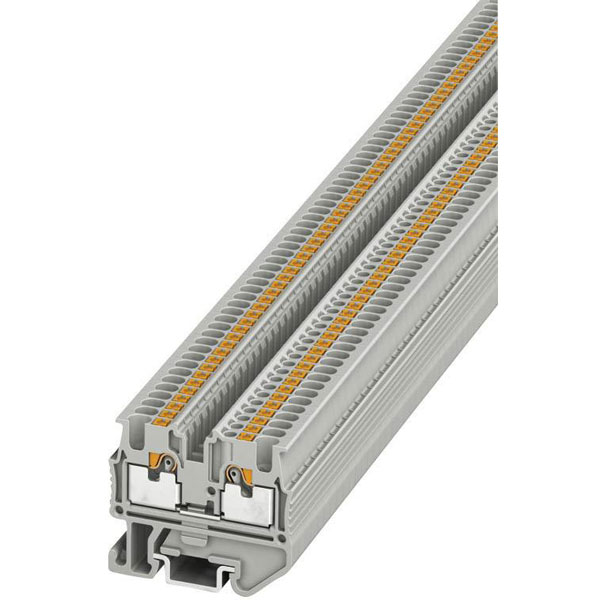

Phoenix Contact 3248100 Continuity 3.5 mm Pull spring Grey 50 pcs

Phoenix Contact's part number 3248100 is a grey 3.5 mm pull spring switchboard terminal for ensuring continuity. It is commonly used in serial terminal applications for reliable electrical connections. This product is typically utilised in switchboards and electrical panels.

Type	Continuity
Pitch	3.5mm
No. of Ways	2
Termination	Spring Clamp
Width	3.5mm
Wire Gauge (mm²)	1.5mm²
AWG (min.)	26
Clamp width	3.5mm
Closing plate required	true
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.14mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 1.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.14 - 1.5mm²
Connection	Pull spring
Cross section (flexible) (min.)	0.14mm²
Cross section (inflexible) (min.)	0.14mm²
Current Rating	17.5A
Depth	28.1mm
Dim	(L x W x H) 33.55 x 3.5 x 28.1 mm
Explosion-tested version Ex e	true
Flammability Rating	V0
Height	28.1mm
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Internally connected stages	true
Length	33.55mm
Material insulation body	Other
Min. stripping length	8mm
Misc Attribute	MPT 1,5/S
Mounting method	DIN rail (top hat rail) 15 mm
Nominal Voltage	500V
Number of clamp positions per level	2
Number of levels	1.0
Number of Pins	2
Number of Rows	1
Operating Temperature	-60 - 110°C
Pins per row	2
Rated current In	17.5A
Rated voltage	500V
Stripping length (max.)	10mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Wire Gauge (AWG)	14
