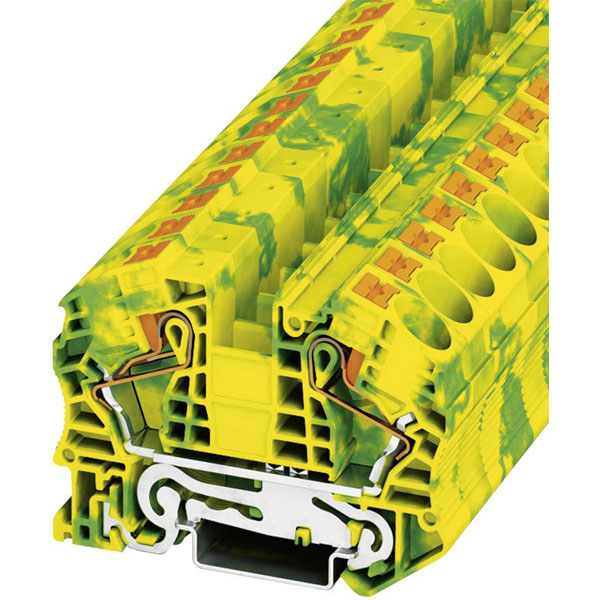

Phoenix Contact 3212147 Push-In PG Terminal 12.2mm Green/Yellow

The Phoenix Contact 3212147 is a triple port PG terminal measuring 12.2 mm, featuring a quick-connect interface in green and yellow. This switchboard terminal ensures continuity and is ideal for serial terminal applications. It is typically used in electrical panels for efficient and reliable connections.

Type	Triple port PG terminal
Pitch	12.2 mm
No. of Ways	2
Termination	Push-in Cage clamp
Width	12.2mm
Wire Gauge (mm²)	25mm²
AWG (min.)	20
Clamp width	12.2mm
Closing plate required	true
Colour	Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 16mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 25mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.5 - 25mm²
Connection	Quick-connect
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Current Rating	76A
Depth	N/Amm
Dim	(L x W x H) 75.4 x 12.2 x 52.6 mm
Flammability Rating	V0
Height	52.6mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Length	75.4mm
Material insulation body	Thermoplastic
Maximum Wire Size AWG	4
Misc Attribute	PT 16 N-PE
Mounting method	DIN rail (top hat rail) 35 mm
Number of clamp positions per level	2
Number of levels	1.0
Number of pins	2
Number of Rows	1
Operating Temperature	-60 - 110°C
PEN function possible	false
Stripping length (max.)	18mm
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Weight	0.04
Wire Gauge (AWG)	4
