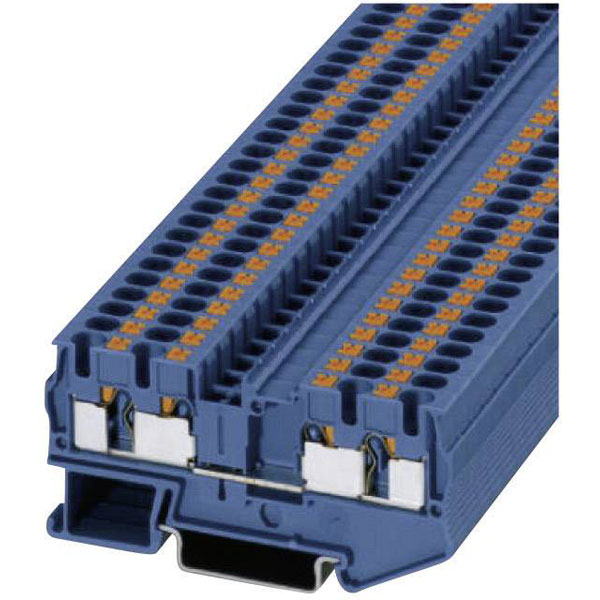

Phoenix Contact's 3211802 continuity quick-connect is a 6.2 mm blue terminal designed for easy and reliable connections. The terminal is typically used in switchboards and control panels for ensuring continuous electrical connections. Its quick-connect feature facilitates efficient wiring and maintenance in various electrical installations.
| Type |
Continuity |
| Pitch |
6.2mm |
| No. of Ways |
2 |
| No. of Levels |
1 |
| Termination |
Push-in Cage clamp |
| Width |
6.2mm |
| Wire Gauge (mm²) |
6mm² |
| AWG (min.) |
24 |
| Clamp width |
6.2mm |
| Closing plate required |
true |
| Colour |
Blue |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 0.25mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2 - 6mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.2 - 6mm² |
| Connection |
Quick-connect |
| Cross section (flexible) (min.) |
0.2mm² |
| Cross section (inflexible) (min.) |
0.2mm² |
| Current Rating |
30A |
| Depth |
35.3mm |
| Dim |
(L x W x H) 77 x 6.2 x 35.3 mm |
| Explosion-tested version Ex e |
N/A |
| Flammability Rating |
V0 |
| Height |
35.3mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Insulation |
Polyamide |
| Internally connected stages |
true |
| Length |
77mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
10 |
| Min. stripping length |
8mm |
| Misc Attribute |
PT 4-QUATTRO BU |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
800V |
| Number of clamp positions per level |
4 |
| Number of levels |
1.0 |
| Number of pins |
4 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
32A |
| Rated voltage |
800V |
| Stripping length (max.) |
10mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Wire Gauge (AWG) |
10 |
