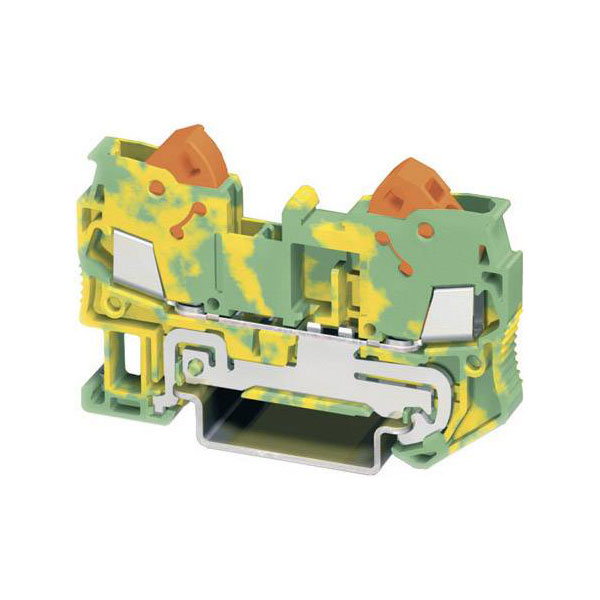

Phoenix Contact 3206432 Triple port PG Terminal 6.2 mm Quick-connect

The Phoenix Contact 3206432 is a triple port PG terminal with quick-connect features, measuring 6.2 mm in width. This green and yellow terminal is ideal for secure and efficient continuity in switchboard applications. It is commonly used for serial connections in components and connectors installations.

Type	Triple port PG terminal
Pitch	6.2mm
No. of Ways	2
Termination	Quick-Connect
Width	6.2mm
Wire Gauge (mm²)	2.5mm²
AWG (min.)	20
Clamp width	6.2mm
Closing plate required	true
Colour	Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve	- - -mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 2.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.5 - 2.5mm²
Connection	Quick-connect
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Depth	N/Amm
Dim	(L x W x H) 62.6 x 6.2 x 39.3 mm
Flammability Rating	V0
Height	39.3mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Length	62.6mm
Material insulation body	Thermoplastic
Maximum Wire Size AWG	14
Misc Attribute 1	QTC 2.5 -PE
Misc Attribute 2	QTC 2,5-PE
Mounting method	DIN rail (top hat rail) 35 mm
Number of clamp positions per level	2
Number of levels	1.0
Number of pins	2
Number of Rows	1
Operating Temperature	-60 - 110°C
PEN function possible	false
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Weight	0.01
Wire Gauge (AWG)	14
