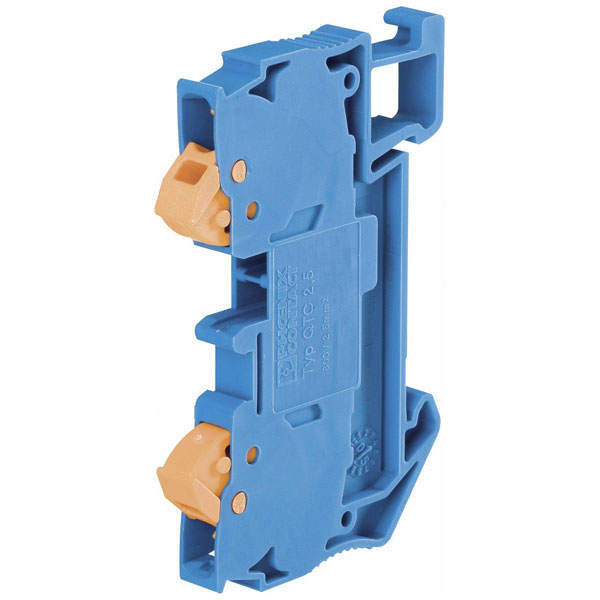

The Phoenix Contact 3206429 is a blue feed-through terminal designed for quick and efficient connections. Featuring dimensions of 58.8 x 5.2 x 39.3 mm, it is suitable for use in switchboards and serial terminal assemblies. This component is ideal for maintaining continuity in electrical circuits within industrial and commercial applications.
| Type |
Continuity |
| Pitch |
6.2mm |
| No. of Ways |
2 |
| Termination |
Quick-Connect |
| Width |
6.2mm |
| Wire Gauge (mm²) |
2.5mm² |
| AWG (min.) |
20 |
| Clamp width |
6.2mm |
| Closing plate required |
true |
| Colour |
Blue |
| Connectable conductor cross section fine-strand with cable end sleeve |
- - -mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5 - 2.5mm² |
| Connectable conductor cross section multi-wired |
- - -mm² |
| Connectable conductor cross section solid-core |
0.5 - 2.5mm² |
| Connection |
Quick-connect |
| Cross section (flexible) (min.) |
0.5mm² |
| Cross section (inflexible) (min.) |
0.5mm² |
| Current Rating |
17.5A |
| Depth |
39.3mm |
| Dim |
(L x W x H) 62.6 x 6.2 x 39.3 mm |
| Explosion-tested version Ex e |
true |
| Flammability Rating |
V0 |
| Height |
39.3mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
62.6mm |
| Material insulation body |
Other |
| Maximum Wire Size AWG |
14 |
| Misc Attribute 1 |
QTC 2,5 BU |
| Misc Attribute 2 |
QTC 2.5 BU |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
800V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
24A |
| Rated voltage |
800V |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Other |
| Type of electrical connection 2 |
Other |
| Wire Gauge (AWG) |
14 |
