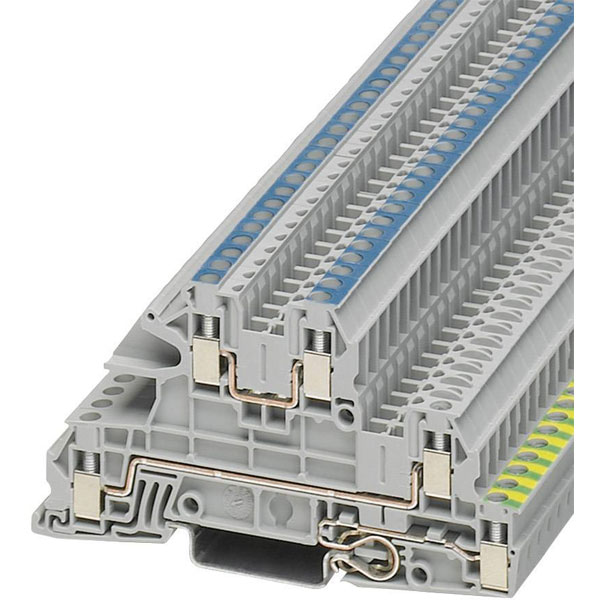

Phoenix Contact 3076030 PG Terminal 5.2 mm Screws grey 1pc

The Phoenix Contact 3076030 PG terminal is a 5.2 mm screw terminal with a grey colour, designed for secure electrical connections. Its main attributes include high continuity and reliability, making it suitable for applications in switchboards and serial terminals. As a versatile component, it is typically utilised in industrial and commercial electrical systems for efficient power distribution.

Type	PG terminal
Pitch	5.2mm
No. of Ways	2
No. of Levels	3
Termination	Screw
Width	5.2mm
Wire Gauge (mm²)	4mm²
AWG (min.)	24
Basic colour	Grey
Clamp width	5.2mm
Closing plate required	true
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 4mm²
Connectable conductor cross section multi-wired	0.2 - 4mm²
Connectable conductor cross section solid-core	0.2 - 4mm²
Connection	Screws
Cross section (flexible) (min.)	0.2mm²
Cross section (inflexible) (min.)	0.2mm²
Current Rating	24A
Depth	51.15mm
Dim	(L x W x H) 93.5 x 5.2 x 51.5 mm
Flammability Rating	V0
Height	51.5mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Insulation class	I
Length	93.5mm
Material insulation body	Other
Maximum Wire Size AWG	12
Misc Attribute	UTI 2,5-PE/L/N
Mounting method	Other
N function possible	N/A
Nominal Voltage	400V
Number of pins	5
Number of potentials	N/A
Number of Rows	3
Operating Temperature	- - -°C
PE-function	true
Rated current In	24A
Rated voltage	400V
Stripping length (max.)	9mm
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Weight	0.02
Wire Gauge (AWG)	12
With N-disconnect slide	N/A
