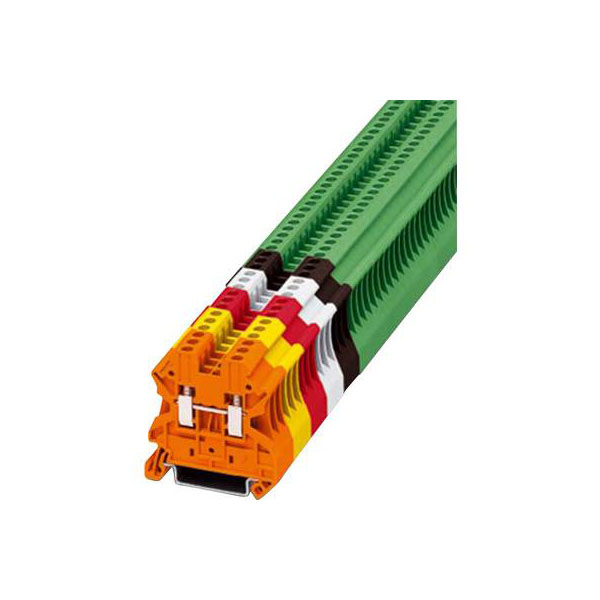

Phoenix Contact manufactures the 3045062 UT 2,5 RD, a red switchboard terminal designed for providing electrical continuity. Featuring 5.2 mm screws, this serial terminal is typically used in electrical and control cabinets. Its robust construction supports secure and reliable connections in industrial environments.
| Type |
Continuity |
| Pitch |
5.2mm |
| No. of Ways |
2 |
| Termination |
Screw |
| Width |
5.2mm |
| Wire Gauge (mm²) |
4mm² |
| AWG (min.) |
26 |
| Clamp width |
5.2mm |
| Closing plate required |
true |
| Colour |
Red |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 4mm² |
| Connectable conductor cross section multi-wired |
0.14 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.14 - 4mm² |
| Connection |
Screws |
| Cross section (flexible) (min.) |
0.14mm² |
| Cross section (inflexible) (min.) |
0.14mm² |
| Current Rating |
24A |
| Depth |
47.5mm |
| Dim |
(L x W x H) 47.7 x 5.2 x 47.5 mm |
| Explosion-tested version Ex e |
true |
| Flammability Rating |
V0 |
| Height |
47.5mm |
| Industrial packaging |
No |
| Inflammability class of insulation material according to UL94 |
V0 |
| Internally connected stages |
true |
| Length |
47.7mm |
| Material insulation body |
Other |
| Misc Attribute |
UT 2,5 RD |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Nominal Voltage |
1000V |
| Number of clamp positions per level |
2 |
| Number of levels |
1.0 |
| Number of Pins |
2 |
| Number of Rows |
1 |
| Operating Temperature |
-60 - 110°C |
| Rated current In |
24A |
| Rated voltage |
1000V |
| Stripping length (max.) |
9mm |
| Suitable for conductor material |
Aluminium/copper |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Wire Gauge (AWG) |
12 |
