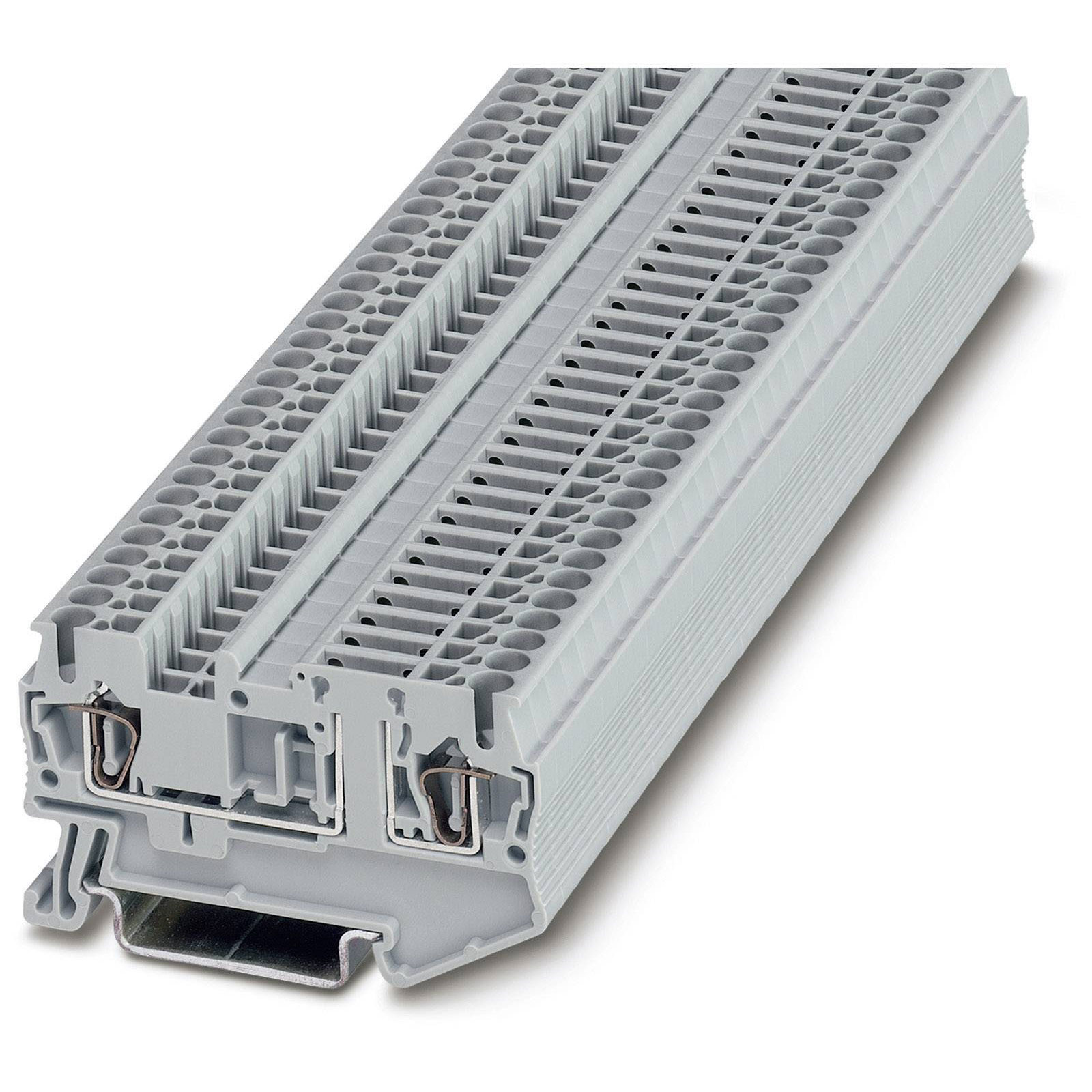

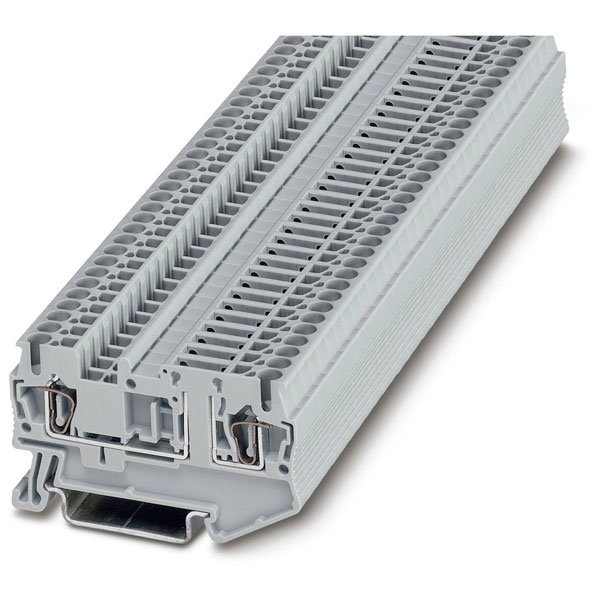

Phoenix Contact 3038367 ST 4-TG spring disconnect Terminals 20A grey

The Phoenix Contact 3038367 ST 4-TG is a grey tension spring disconnect terminal designed for rail mounting, with dimensions of 61.5x6.2x44mm. It features a spring cage connection suitable for ensuring continuity in serial or switchboard terminal applications. This component is typically used in various electrical and electronic connectivity setups for secure and reliable wire connections.

Type	N terminal
No. of Ways	2
No. of Levels	1
Termination	Spring Clamp
Width	6.2mm
Wire Gauge (mm²)	6mm²
AWG (min.)	28
Clamp width	6.2mm
Closing plate required	false
Colour	Grey
Connectable conductor cross section fine-strand with cable end sleeve	0.14 - 0.14mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 4mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.08 - 6mm²
Connection	Pull spring
Cross section (flexible) (min.)	0.08mm²
Cross section (inflexible) (min.)	0.08mm²
Current Rating	20A
Depth	36.5mm
Dim	(L x W x H) 61.5 x 6.2 x 36.5 mm
Flammability Rating	V0
Height	36.5mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V0
Insulation	PA
Internally connected stages	true
Length	61.5mm
Material insulation body	Thermoplastic
Maximum Wire Size AWG	12
Min. stripping length	8mm
Misc Attribute	ST 4-TG
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	500V
Number of clamp positions per level	2
Number of levels	1.0
Number of pins	2
Number of Rows	1
Operating Temperature	- - -°C
Rated current In	20A
Rated voltage	500V
Stripping length (max.)	10mm
Type of cross disconnection	None
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Type of slitting	N/A
Wire Gauge (AWG)	12
With integrated test socket	false
