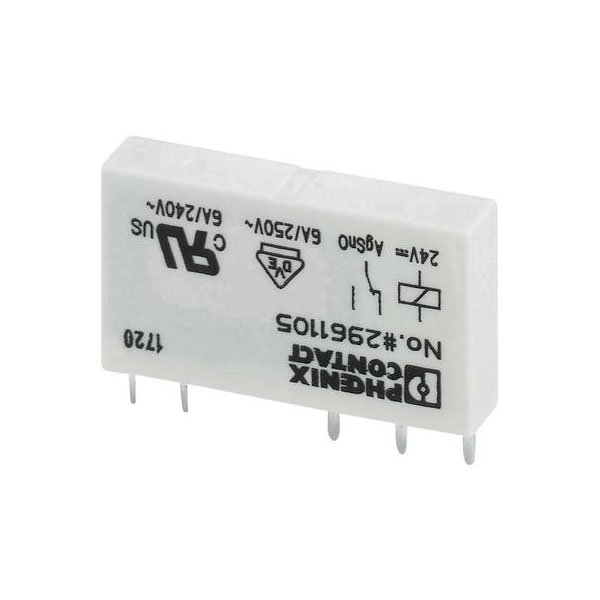

Phoenix Contact 2961105 REL-MR PCB Relay 24V DC 6A 1CO Plug-in Miniature

The Phoenix Contact REL-MR-24DC/21 PCB relay provides a 24 V DC supply and supports up to 6 A with a single change-over contact. Designed for PCB mounting, this mini relay is ideal for applications requiring reliable switching and compact size. Common uses include automation systems and electronic controls in industrial settings.

Coil Voltage	24V DC
Contact Configuration	1CO (SPDT)
Switching Current	6A
Coil Resistance	3390O
Complete with socket	false
Connection	Solder pins
Contact Material	AgSnO
Control Mode	monostable, 1 coil
Degree of protection (IP)	Other
Depth	15mm
Dimensions	(W x H x D) 5 x 28 x 15 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Height	28mm
Material contact	N/A
Material of contact insert	Other
Material of contact surface	Untreated
Max. starting current	N/AA
Max. switching capacity	1500VA
Misc Attribute	REL-MR- 24DC/21
Mounting Type	PCB
Nominal Current	0.007A
Number of contacts as change-over contact	1
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Operating voltage AC 50 Hz	- - -V
Operating voltage AC 60 Hz	- - -V
Operating voltage DC	- - -V
Rated control supply voltage AC 50 Hz	- - -V
Rated control supply voltage AC 60 Hz	- - -V
Rated control supply voltage DC	14.4 - 66V
Relay technology category according to IEC 61810-7	N/A
Type	PCB relay
Type of electric connection	Other
Type of switch contact	Single contact
Voltage type (operating voltage)	N/A
Voltage type for actuating	DC
Width	5.0mm
With detachable clamps	false
With forced-guided contacts	false
With LED indication	false
