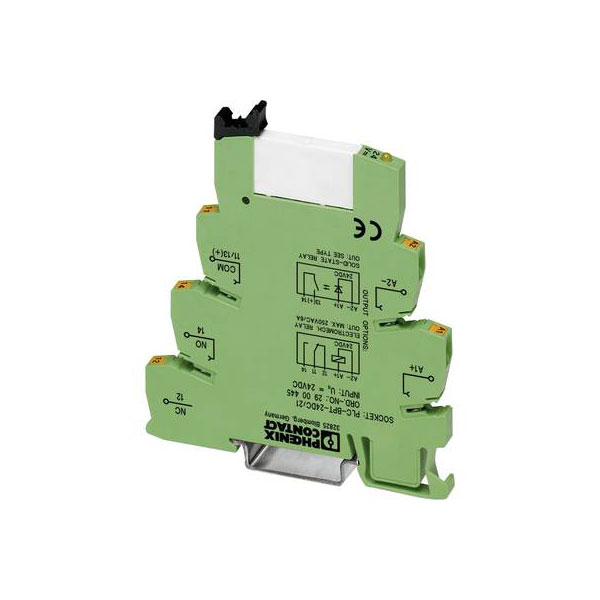

Phoenix Contact 2900299 PLC-INTERFACE Relay Module 1 PDT 24V DC

Phoenix Contact manufactures the Relay Module PLC-RPT-24DC/21, 2900299, designed for power electronics applications. This interface relay serves as a changing load relay and signal converter interface, suitable for AC loads. It is commonly used for reliable signal conversion and load switching in industrial settings.

Type	Interface relay
Input Voltage	24V DC
Contact Configuration	1CO
Switching Current	6A
Width	6.2mm
Height	80mm
Complete with socket	true
Connection	Push-in connector
Contact Material	AgSnO
Degree of protection (IP)	IP20
Depth	94mm
Dim	(W x H x D) 6.2 x 80 x 94 mm
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
Industrial packaging	Yes
IP Rating	IP20
Material contact	N/A
Material of contact insert	Other
Material of contact surface	Untreated
Max. starting current	N/AA
Max. temperature	+60°C
Min. temperature	-40°C
Misc Attribute	PLC-RPT- 24DC/21
Nominal Current	0.009A
Number of contacts as change-over contact	1
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Operating voltage AC 50 Hz	- - -V
Operating voltage AC 60 Hz	- - -V
Operating voltage DC	- - -V
Rated control supply voltage AC 50 Hz	- - -V
Rated control supply voltage AC 60 Hz	- - -V
Rated control supply voltage DC	18.5 - 33.6V
Relay technology category according to IEC 61810-7	N/A
Type of electric connection	Other
Type of switch contact	Single contact
Voltage type (operating voltage)	N/A
Voltage type for actuating	DC
With detachable clamps	false
With forced-guided contacts	false
With LED indication	true
