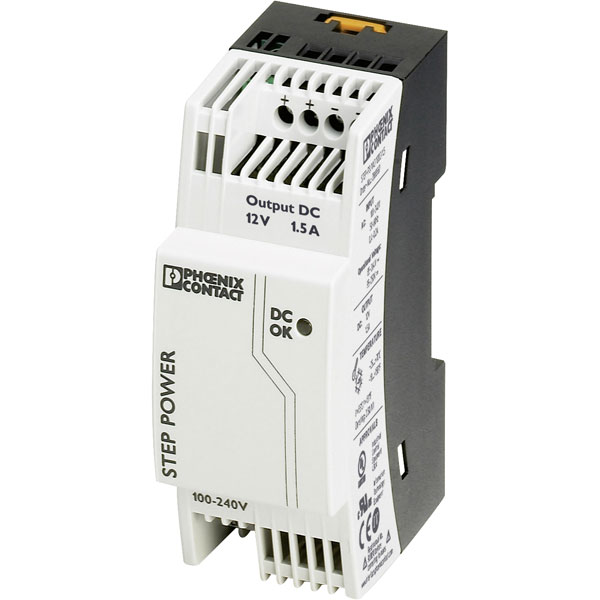

Phoenix Contact 2868567 STEP-PS/1AC DIN Rail Power Supply 12V DC 1.5A 18W

A power supply from Phoenix Contact for service distribution and flat control panels. At the output there are 12V DC and max. 1.5A available. Through the high degree of efficiency and low standby, a high level of energy efficiency is achieved.
Worldwide use of wide-range output and international approval package, while other features include: high operational reliability thanks to high MTBF >500 000 h, parallel switch bar for increased output and redundancy, simplified operation by LED fault monitoring, high reliability through long mains buffering times> 20MS and snap-on to DIN rail or screwing-on flat surface.

• Input voltage range: 85-264 V/AC / 90-250V DC
• 1 phase
• Output: 12V DC 1.5A 18W
• Switched PSU
• Termination type: Screw terminals
• Manufacturer's part 2868567

For more information on this Phoenix Contact power supply, please see its datasheet.
DIN rail power supply

Input Voltage	85 - 264 AC
No. of outputs	2
Output Current	1.5
Output voltage	12V
