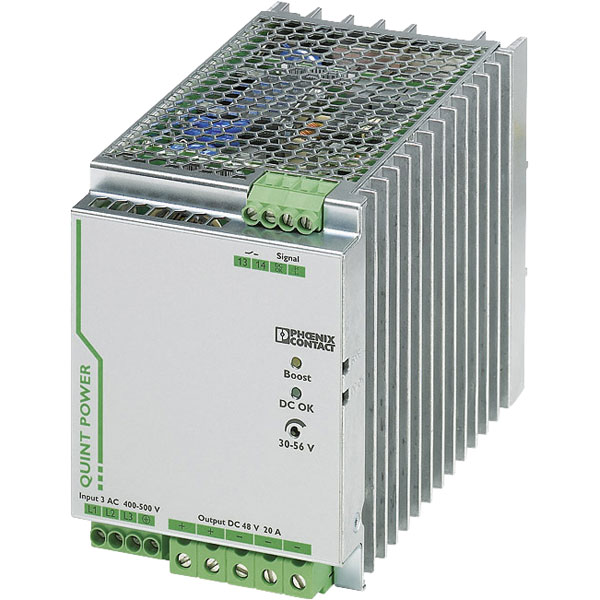

Phoenix Contact 2320827 QUINT-PS/3AC DIN Rail Power Supply 48V DC 20A 960W

A Quint power supply from Phoenix Contact with SFB technology (Selective Fuse Breaking) that quickly trips at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur. Reliable starting of heavy loads takes place via the static power reserve "Power Boost". Features include: Adjustable output voltage of 30 to 56V DC, reliable starting of difficult loads with the static "Power Boost" power reserve with up to 1.5 times the nominal current permanently, fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12MS and preventive function monitoring indicates critical operating states before errors occur.

• Input voltage: 3x 320-575V/AC/450-800V DC
• Output current: 20A
• Weight: 3kg
• Width: 96mm
• Height: 130mm
• Power: 960W
• Nominal input voltage: 400V/AC, 450-800V/DC
• Output voltage: 48V DC
• Manufacturer's part 2320827

For more information on this Phoenix Contact power supply, please see its datasheet.
DIN rail power supply

Output Voltage	48V
Output Current	20
Number of Outputs	2
Power Rating	960W
1st secondary output voltage	30 - 56V
2nd secondary output voltage	- - -V
3rd secondary output voltage	- - -V
Built-in height	130mm
Built-in width	N/Amm
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
Depth	179mm
Direct mounting possible	false
Height	130mm
Input Voltage	320 - 575 AC
Max. output current 1	22.5A
Max. output current 2	N/AA
Max. output current 3	N/AA
Nominal value output current 1	20A
Nominal value output current 2	N/AA
Nominal value output current 3	N/AA
Nominal value output voltage 1	48V
Nominal value output voltage 2	N/AV
Nominal value output voltage 3	N/AV
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	None
Power Consumption	1386VA
Power Output	960W
Rated supply voltage AC 50 Hz	400 - 500V
Rated supply voltage AC 60 Hz	400 - 500V
Rated supply voltage DC	500 - 800V
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	None
Stabilized	true
Suitable for distribution board	false
Suitable for rail mounting	true
Suitable for safety functions	true
Type of electric connection	Screw connection
Voltage type (supply voltage)	AC
Wall mounting possible	false
Width	96mm
Width in number of modular spacings	N/A
