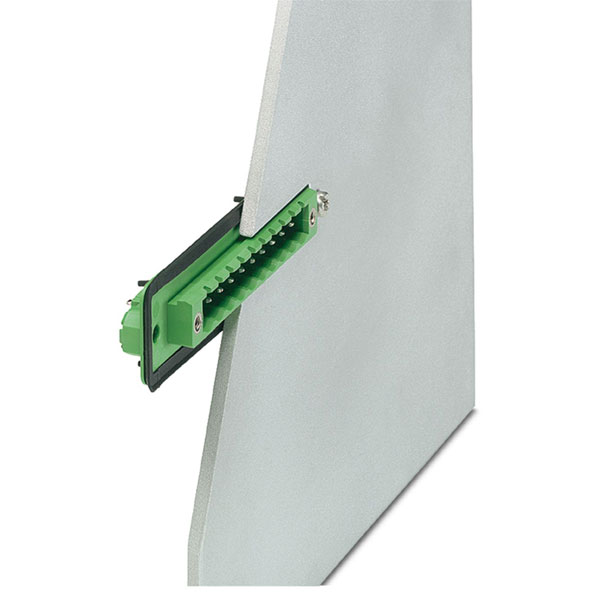

Phoenix Contact 1899016 PCB Connector DFK-MSTBA 2.5/ 5-GF-5.08
Feed-through header, nominal cross section: 2.5 mm2, colour: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range:
DFK-MSTBA 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system:
COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: packed in cardboard
- Pitch: 5.08 mm
- Width: [w] 55.16 mm
- Height: [h] 20.07 mm
- Length: [l] 12 mm
- Installed height: 20.07 mm
- Solder pin length: [P] 3.23 mm
- Pin dimensions: 1 x 1 mm
| Pitch |
5.08mm |
| Mounting Type |
PCB |
| Mounting Direction |
Vertical |
| Wire Termination |
Rising Clamp |
| Angle PCB/contact |
N/A |
| Colour |
Green |
| Connector model |
Other |
| Contact Finish |
Tin-plated |
| Contact Type |
Pin |
| Current Rating |
12A |
| Diameter connection pin |
1.4mm |
| Height |
[h] 20.07mm |
| Housing Colour |
Green |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length |
[l] 12mm |
| Length pin |
3.23mm |
| Material insulation body |
Other |
| Material of contact surface |
Other |
| Modular spacing connections |
5.08mm |
| Modular spacing contacts |
5.08mm |
| No. of Rows |
1 |
| Number of plug-in contact rows |
1 |
| Number of Poles |
5 |
| Operating Temperature |
-40 - 100°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Rated current In |
12A |
| Rated Surge Voltage |
4kV |
| Rated voltage |
320V |
| Suitable for PCB thickness |
N/Amm |
| Type |
PCB Connector |
| Type of banding |
Carton (for SMD) |
| Type of connection |
N/A |
| Type of electric connection |
Other |
| Type of fastening |
Other |
| Type of PCB fastening |
N/A |
| Voltage Rating |
320V |
| Width |
[w] 55.16mm |
