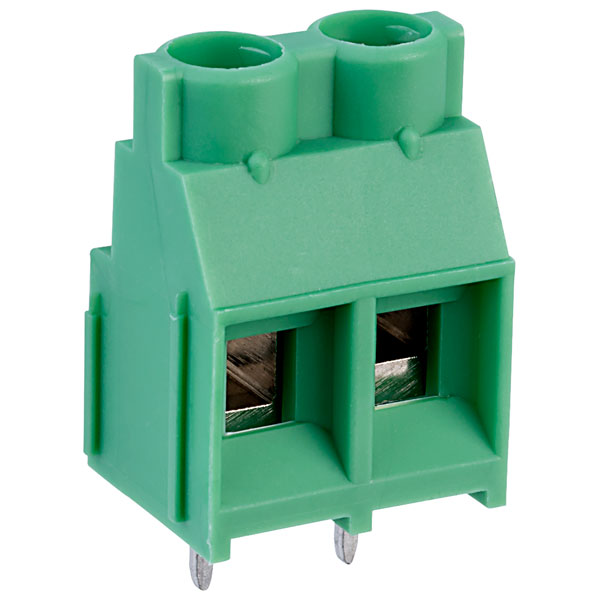

Phoenix Contact 1868076 MKDS 5/ 2-7,62 2 Way Screw PCB Terminal Block 32A 7.62mm

Inc VAT

Qty	Unit Price (Ex VAT)
50+	£1.29

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 50

Available to back orderBack-order availability date - 27/10/2026

PCB mounting terminal blocks for connecting wires directly to a circuit board.

Moulded-in latches allow the blocks to be joined together end-to-end without affecting the overall pitch.

Pitch	7.62mm
No. of Ways	2
Mounting Type	Through Hole
Mounting Direction	Vertical
Wire Gauge (AWG)	24 to 10AWG
Wire Termination	Rising Clamp
Angle PCB/conductor connection	N/A
Colour	Green
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 4mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 4mm²
Connectable conductor cross section multi-wired	0.2 - 1.5mm²
Connectable conductor cross section solid-core	0.2 - 6mm²
Connection type conductor	Screw connection
Connection type PCB	Soldering connection
Current Rating	32A
Degree of protection (IP), mounted	N/A
Diameter connection pin	N/Amm
Height	26.6mm
Housing colour	Green
Inflammability class of insulation material according to UL94	V0
Length pin	5.1mm
Material connection surface	Tin
Material insulation body	Other
Modular spacing connections	7.62mm
No. of Levels	1
Number of electrical connections	2
Number of levels	1
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	32A
Rated Surge Voltage	6kV
Rated voltage	630V
Type of banding	Carton (for SMD)
Type of fastening	Solder
Type of PCB fastening	Connecting contact
Voltage Rating	630V
