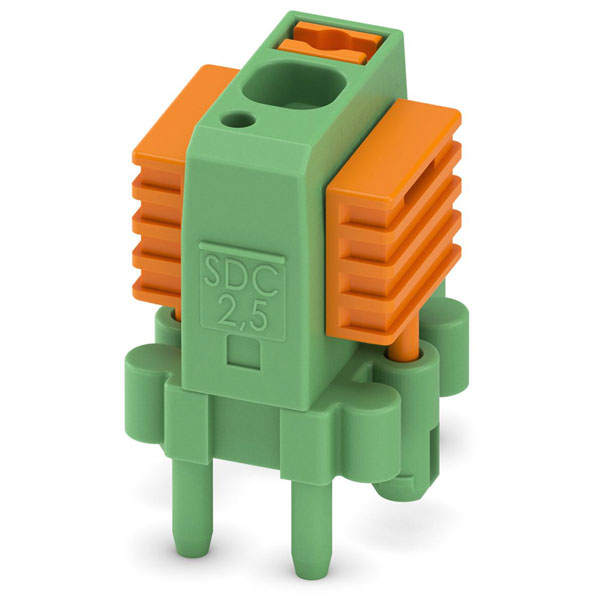

Phoenix Contact 1864024 Pin housing PCB 1 pin 5 mm contact spacing

The Phoenix Contact pin housing PCB, model 1864024, features a single pin with a 5 mm contact spacing, ideal for compact connections. This component is typically used in printed circuit board applications where secure pin connections are essential. Ideal for use in industrial and electronic projects, it ensures reliable performance and durability.

Pitch	5mm
No. of Ways	1
Mounting Type	Wire-to-Board
Mounting Direction	Vertical
Wire Gauge (AWG)	24 to 12AWG
Wire Termination	Push-in connector
Actuation direction	Perpendicular (to the PCB)
Angle contact/conductor connection	Other
AWG (min.)	24
Board contact surface	Tin plated
Case Material	PA
Coating housing	N/A
Colour	Green & Orange
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 2.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 2.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.2 - 2.5mm²
Connector contact surface	Tin plated
Connector Type	Plug
Contact Material	Copper
Contact Type	N/A
CS	5mm
Current Rating	12A
Degree of protection (IP), mounted	N/A
Housing Colour	Green
Housing Material	Other
Inflammability class of insulation material according to UL94	V0
Insulation Material	PA
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
max. cross section	2.50mm²
Max. temperature	+100°C
Min. cross section	0.20mm²
Min. temperature	-40°C
Misc Attribute	SDC 2,5/ 1-PV-5,0-ZB
Modular spacing connections	5mm
Modular spacing contacts	5mm
No. of Levels	1
Number of plug-in contact rows	1
Number of Poles	1
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pin shape	Double
Pins per row	1
Pollution degree	2
Rated current In	12A
Rated Surge Voltage	4kV
Rated voltage	320V
Series	SDDC
Stripping length (max.)	8mm
Total number of pins	1
Type	Pin housing PCB
Type of connection	Other
Type of electric connection	Spring clamp connection
Voltage Rating	320V
With protective conductor	N/A
