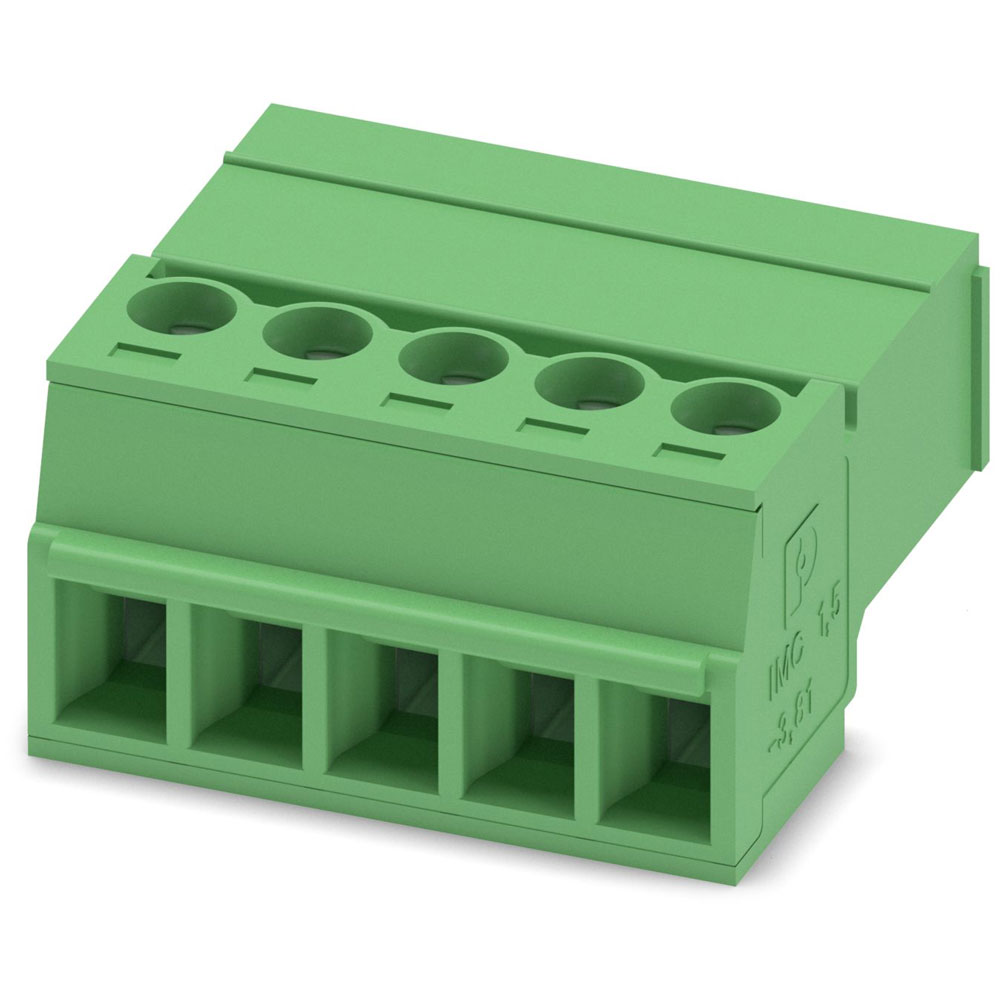

Phoenix Contact 1857919 plug 5-pin 3.81 mm pitch 8 A 160 V x50

Phoenix Contact manufactures the pin housing PCB IMC, featuring a total of 5 pins with a contact spacing of 3.81 mm. This product, identified by part number 1857919, is ideal for industrial applications requiring reliable electrical connections on printed circuit boards. It is available in production packaging with a unit content of 50 pieces.

Body Style	Plug, horizontal mount
Pitch	3.81mm
No of Ways Per Row	5
No. of Rows	1
Current Rating	8A
Colour	Green
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Angle contact/conductor connection	Other
AWG (min.)	28
Coating housing	N/A
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.5mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14 - 1.5mm²
Connectable conductor cross section multi-wired	- - -mm²
Connectable conductor cross section solid-core	0.14 - 1.5mm²
Connector System	wire-to-board
Contact Material	Tin plated
Contact Type	Other
Degree of protection (IP), mounted	N/A
Dim	(L x W x H) 11.10 x 19.84 x 17.90 mm
Height	17.90mm
Housing Colour	Green
Housing Material	Other
Industrial packaging	Yes
Inflammability class of insulation material according to UL94	V0
Length	11.10mm
Material contact	Copper
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
Misc Attribute	IMC 1,5/ 5-ST-3,81
Modular spacing connections	3.81mm
Modular spacing contacts	3.81mm
Nominal Voltage	160V
Number of plug-in contact rows	1
Number of Poles	5
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pollution degree	2
Rated current In	8A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Series	IMC
Stripping length (max.)	7.00mm
Total number of pins	5
Type of connection	Other
Type of electric connection	Screw connection
Width	19.84mm
With protective conductor	N/A
