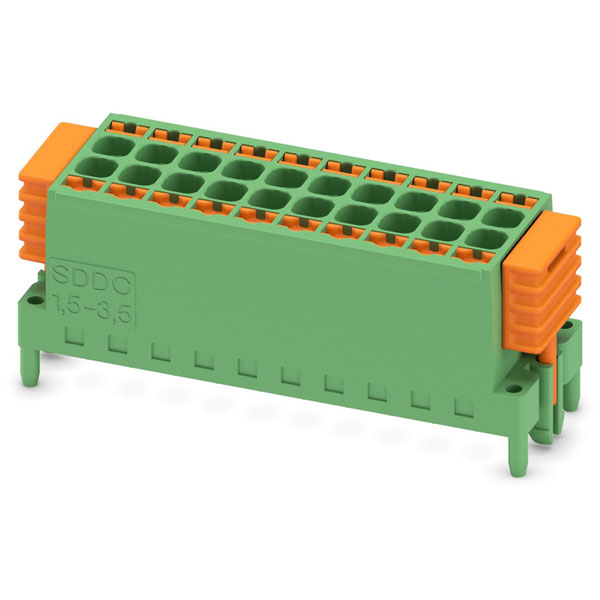

Phoenix Contact 1848723 Pin housing PCB 20 pins 3.50mm spacing

The Phoenix Contact pin housing PCB features 20 pins with a contact spacing of 3.50 mm. This component is ideal for secure and reliable PCB connections in electronic assemblies. It is commonly used in industrial automation and control systems.

Pitch	3.5mm
No. of Ways	20
Mounting Type	Wire-to-Board
Mounting Direction	Vertical
Wire Gauge (AWG)	24 to 16AWG
Wire Termination	Push-in connector
Actuation direction	Perpendicular (to the PCB)
Angle PCB/contact	N/A
AWG (min.)	24
Board contact surface	Tin plated
Case Material	PA
Colour	Green & Orange
Connector contact surface	Tin plated
Connector model	Other
Connector Type	Plug
Contact Material	Copper
Contact Type	N/A
CS	3.50mm
Current Rating	8A
Diameter connection pin	N/Amm
Housing Colour	Green
Inflammability class of insulation material according to UL94	V0
Insulation Material	PA
Length pin	N/Amm
Material insulation body	Other
Material of contact surface	Other
max. cross section	1.50mm²
Max. temperature	+100°C
Min. cross section	0.20mm²
Min. temperature	-40°C
Misc Attribute	SDDC 1,5/10-PV-3,5
Modular spacing connections	3.5mm
Modular spacing contacts	3.5mm
No. of Levels	2
Number of plug-in contact rows	2
Number of Poles	10
Operating Temperature	-40 - 100°C
Overvoltage category	III
Pin shape	Double
Pins per row	10
Pollution degree	2
Rated current In	8A
Rated Surge Voltage	2.5kV
Rated voltage	160V
Series	SDDC
Stripping length (max.)	8mm
Suitable for PCB thickness	N/Amm
Total number of pins	20
Type	Pin housing PCB
Type of banding	Carton (for SMD)
Type of connection	N/A
Type of electric connection	Other
Type of fastening	Engage (snap)
Type of PCB fastening	N/A
Voltage Rating	160V
