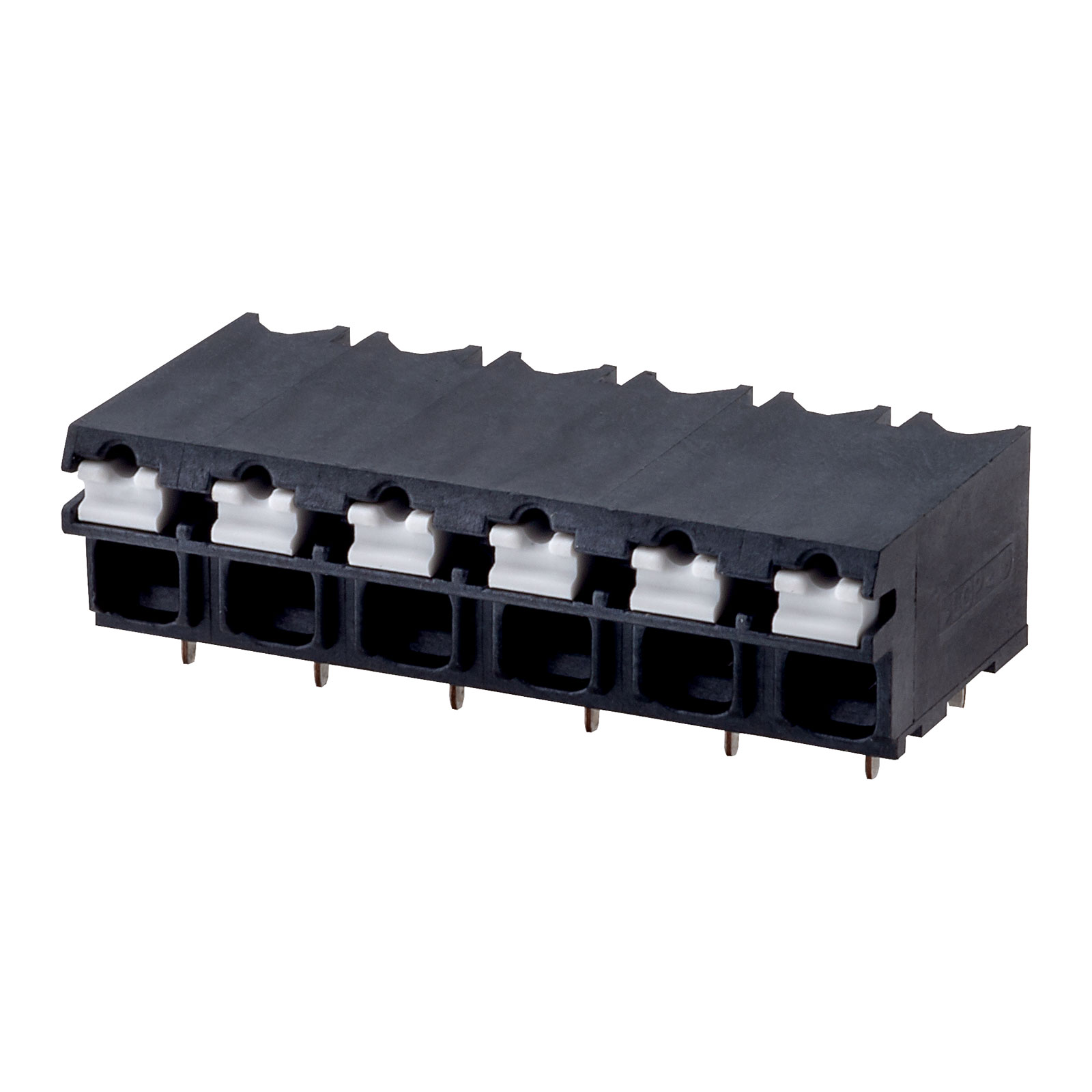

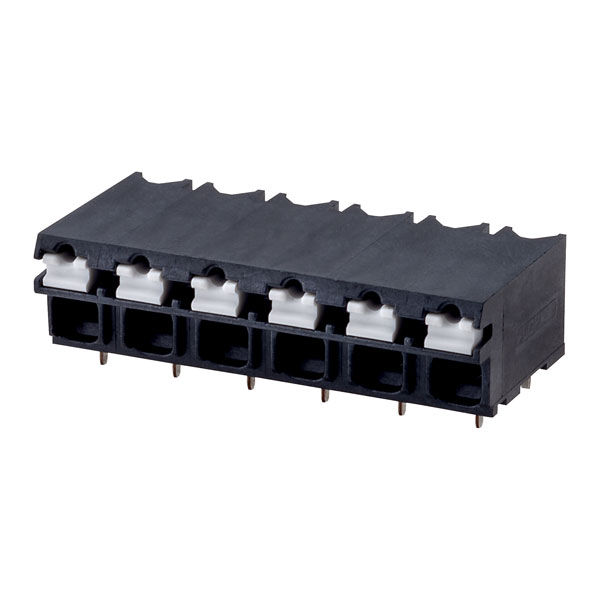

6-way 13.5A, 160V, 5mm pitch horizontal PCB mounting terminal blocks from Phoenix Contact's SPT-THR 1,5/ H-5,0 series.
Supplied as a FULL REEL of 250 pieces on 56mm tape.
- No. of ways: 6
- Supplied in a as a FULL REEL of 250 pieces on 56mm tape
- Nominal current: 13.5A
- Rated voltage: 160V
- Pitch: 5mm
- Length: 13.6mm
- Width: 29mm
- Height: 9.7mm
- Through-hole PCB mounting with linear double pinning
- Housing colour: black
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Designed for integration into the SMT soldering process
- Operation and conductor connection from one direction enable integration into front of device
- Quick and convenient testing using integrated test option
- Two solder pins reduce the mechanical strain on the solder pads
- Phoenix Contact type SPT-THR 1,5/ 6-H-5,0
- Phoenix Contact part no. 1823890
| Pitch |
5mm |
| No. of Ways |
6 |
| Mounting Type |
PCB |
| Mounting Direction |
Vertical |
| Wire Gauge (AWG) |
24 to 16AWG |
| Wire Termination |
Screwless |
| Angle PCB/conductor connection |
N/A |
| Body Style |
Terminal strip |
| Colour |
Black |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.2 - 0.75mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2 - 1.5mm² |
| Connectable conductor cross section multi-wired |
1.5 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.2 - 1.5mm² |
| Connection type conductor |
Spring clamp connection |
| Connection type PCB |
Soldering connection |
| Current Rating |
13.5A |
| Degree of protection (IP), mounted |
N/A |
| Diameter connection pin |
N/Amm |
| Height |
9.7mm |
| Housing colour |
Black |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length pin |
2mm |
| Material connection surface |
Tin |
| Material insulation body |
Other |
| Modular spacing connections |
5mm |
| No. of Levels |
1 |
| Number of electrical connections |
6 |
| Number of levels |
1 |
| Operating Temperature |
-40 - 105°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Rated current In |
17.5A |
| Rated Surge Voltage |
4kV |
| Rated voltage |
320V |
| Series |
SPT-THR 1,5/ H-5,0 |
| Type of banding |
Blister girdle (for SMD) |
| Type of fastening |
Solder |
| Type of PCB fastening |
Connecting contact |
| Voltage Rating |
160V |
