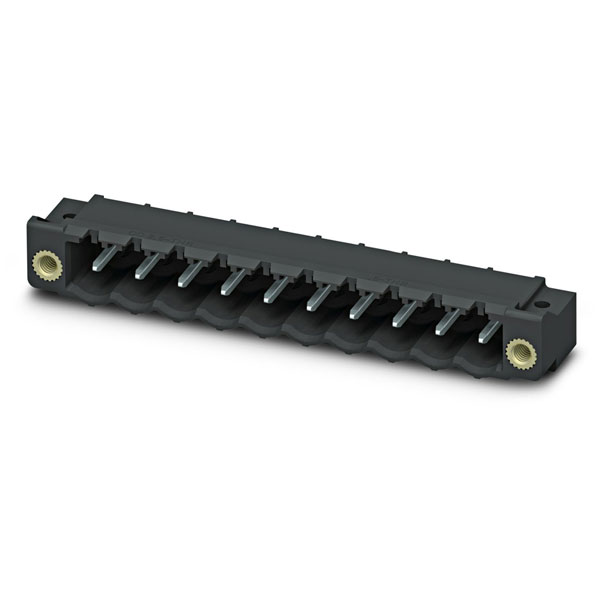

Phoenix Contact 1792708 pin housing PCB 10 pins 5.08mm spacing

Phoenix Contact's pin housing PCB 1792708 features 10 pins with a contact spacing of 5.08 mm, designed for secure PCB connections. This PCB socket strip is ideal for electronic and electrical applications requiring reliable long-term performance. It is commonly used in industrial automation systems and electronic equipment assembly.

Body Style	Plug, horizontal mount
Pitch	5.08mm
No of Ways Per Row	8
No. of Rows	1
Current Rating	12A
Colour	Black
Wire Gauge (AWG)	N/A
Wire Gauge (mm²)	N/A
Angle PCB/contact	N/A
Connection	Print
Connector contact surface	Tin
Connector model	Other
Contact Type	Pin
Diameter connection pin	1.6mm
Dim	(L x W x H) 12 x 60.96 x 11.2 mm
Height	11.2mm
Housing colour	Black
Inflammability class of insulation material according to UL94	V0
Insulation Material	LCP
Length	12mm
Length pin	2.6mm
Material insulation body	Other
Material of contact surface	Other
Misc Attribute	CC 2,5/10-GF-5,08-LR P26THR
Modular spacing connections	5.08mm
Modular spacing contacts	5.08mm
Nominal Voltage	400V
Number of plug-in contact rows	1
Number of Poles	10
Operating Temperature	-40 - 105°C
Overvoltage category	III
Pollution degree	2
Rated current In	12A
Rated Surge Voltage	4kV
Rated voltage	320V
Suitable for PCB thickness	N/Amm
Total number of pins	10
Type of banding	Carton (for SMD)
Type of connection	N/A
Type of electric connection	Other
Type of fastening	Engage (snap)
Type of PCB fastening	N/A
Width	60.96mm
