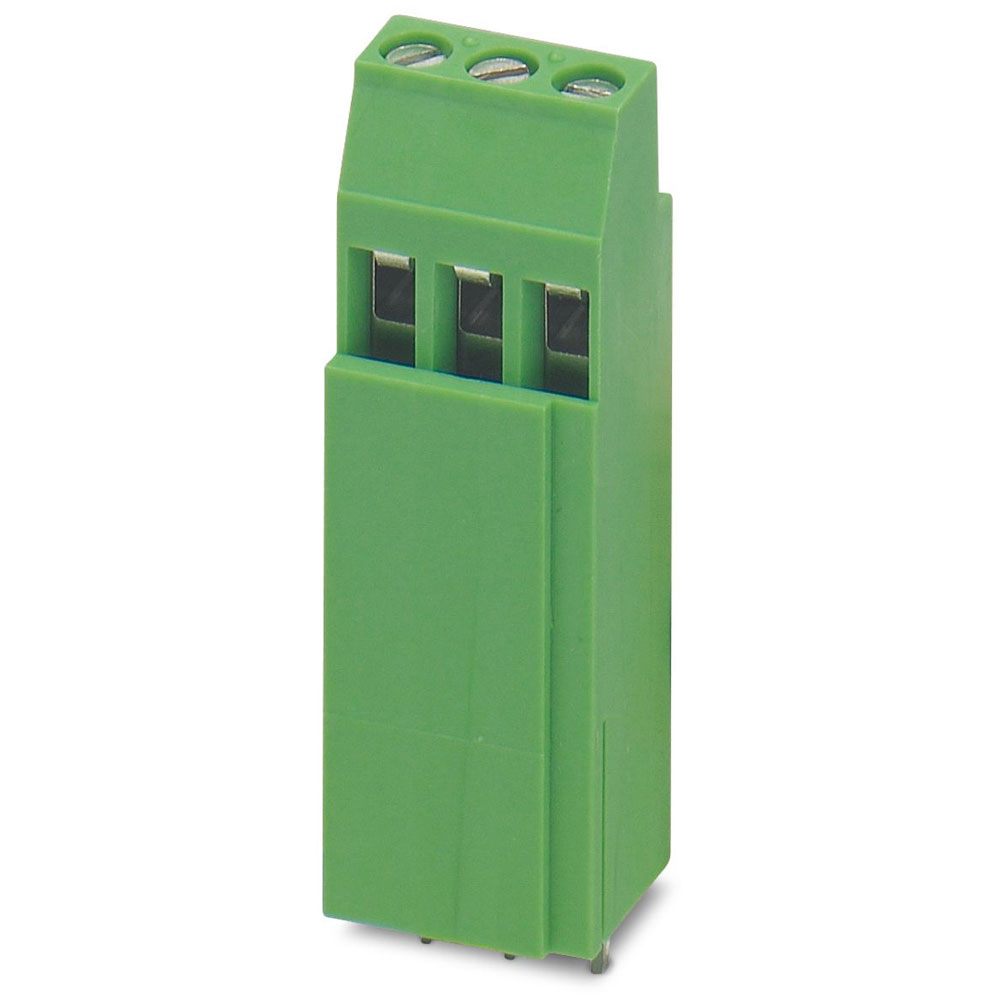

This Phoenix Contact 1705213 3-Way, 20A, 176V, 5mm pitch linear PCB mounting feed-through header is from the MKKDSH 3-EX series.
- No. of ways: 3
- Nominal current: 20A
- Rated voltage: 176V
- Pitch: 5mm
- Length: 11.1mm
- Width: 15mm
- Height: 36.5mm
- Through-hole PCB mounting with linear double pinning
- Housing colour: Red
- Screw connection with tension sleeve
| Pitch |
5mm |
| No. of Ways |
3 |
| Mounting Type |
PCB |
| Mounting Direction |
Vertical |
| Wire Gauge (AWG) |
24 to 12AWG |
| Wire Termination |
Rising Clamp |
| Angle PCB/conductor connection |
N/A |
| Colour |
Red |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25 - 2.5mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2 - 2.5mm² |
| Connectable conductor cross section multi-wired |
0.2 - 1.5mm² |
| Connectable conductor cross section solid-core |
0.2 - 4mm² |
| Connection type conductor |
Screw connection |
| Connection type PCB |
Soldering connection |
| Current Rating |
20A |
| Degree of protection (IP), mounted |
N/A |
| Diameter connection pin |
N/Amm |
| Height |
36.5mm |
| Housing Colour |
Red |
| Inflammability class of insulation material according to UL94 |
V0 |
| Length pin |
5mm |
| Material connection surface |
Tin |
| Material insulation body |
Other |
| Modular spacing connections |
5mm |
| No. of Levels |
1 |
| Number of electrical connections |
3 |
| Number of levels |
1 |
| Operating Temperature |
-50 - 110°C |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Rated current In |
20A |
| Rated Surge Voltage |
N/AkV |
| Rated voltage |
N/AV |
| Type of banding |
Carton (for SMD) |
| Type of fastening |
Solder |
| Type of PCB fastening |
Connecting contact |
| Voltage Rating |
176V |
