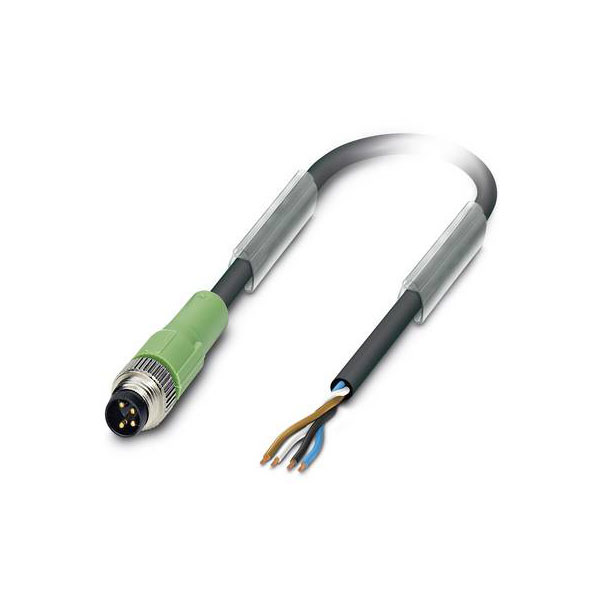

Phoenix Contact 1681787 SAC Sensor/Actuator Cable 4P M8 Plug 1.5m PUR

Phoenix Contact's Sensor/Actuator cable SAC-4P-M 8MS/1,5-PUR is a durable pre-fabricated connector with a length of 1.5 metres. It is designed for reliable signal transmission in industrial automation applications. This robust polyurethane cable is suitable for use in harsh environments.

Connector 1	Cable, open end
Connector 2	M8
Colour	Black
Length	1.5m
Type	Sensor connector
Cable Length	1.5m
Cable Type	Multi-core
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.17mm
Halogen free	true
Material	PUR
Material contact body	CuSn
Material of cable sheath	Other
Material of contact surface	Other
Misc Attribute	SAC-4P-M 8MS/1,5-PUR
Nominal Current	4A
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-25 - 80°C
Positioning cable feed, box-sided	Other
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	false
Thread Type	M8
Type of electrical connection, box-sided	Other
Type of electrical connection, field-sided	M8
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
