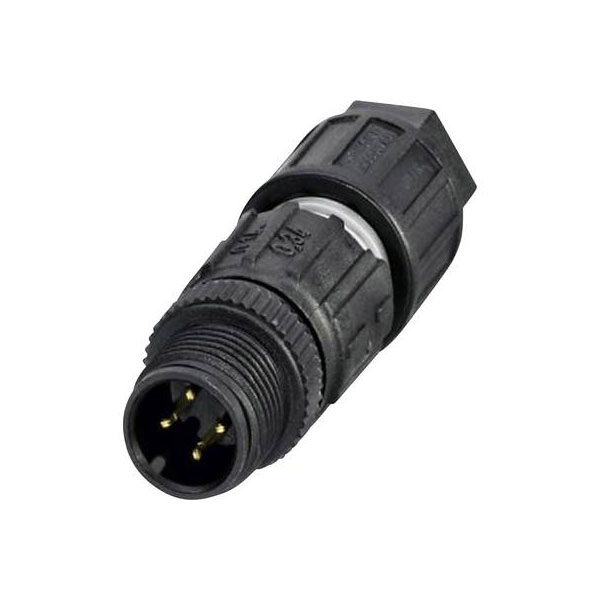

The Phoenix Contact sensor/actuator connector 1641714 is an M12 plug with a straight design and four pins. Known for its robust construction, it's suitable for industrial and automation applications. This connector is ideal for connecting sensors and actuators in various machinery and control systems.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Type |
Sensor connector |
| Ambient temperature |
-25 - 80°C |
| Coating housing |
Other |
| Coding |
A |
| Conductor Cross Section |
0.34mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.34mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 0.34mm² |
| Connectable conductor cross section multi-wired |
0.14 - 0.34mm² |
| Connectable conductor cross section solid-core |
0.14 - 0.34mm² |
| Connection |
Cut & Clip |
| Contact Type |
Other |
| Degree of protection (IP), mounted |
IP67 |
| Diameter |
1.60mm |
| Diameter connector |
16.3mm |
| For cable outer diameter |
3.5 - 6mm |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
V0 |
| IP Rating |
IP65, IP67 |
| Material |
PUR |
| Material of contact surface |
Nickel |
| Material thread ring |
Plastic |
| Min. number of insertion cycles |
100 |
| Misc Attribute |
SACC-M12MS-4QO-0,34 |
| Nominal Current |
4A |
| Nominal Voltage |
125V |
| Number of control contacts |
4 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
III |
| Pollution degree |
3 |
| Rated current In |
4A |
| Rated voltage |
125V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Insulation displacement connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
