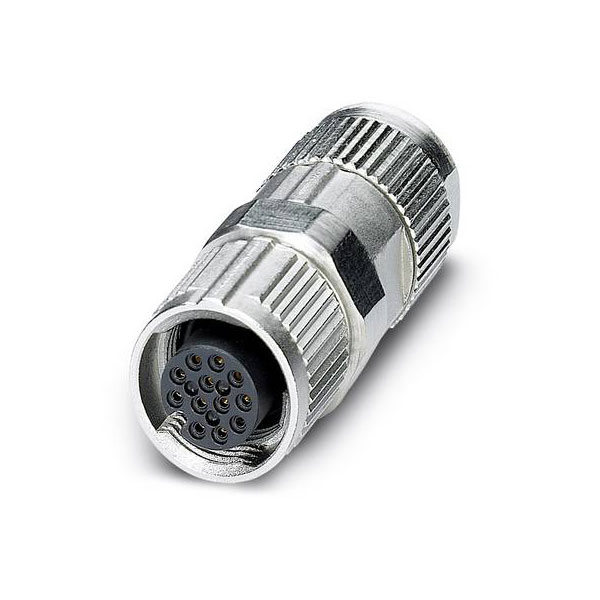

Phoenix Contact's sensor/actuator plug-in connector, SACC-FS-12PCON SCO 1559631, offers reliable electrical connections for automation systems. It is known for its robust design and versatility in interfacing sensors and actuators. Ideal for industrial applications, it ensures streamlined connectivity for control systems.
| Connector 1 |
M12 |
| Connector 2 |
Customisable |
| Colour |
Multicolour |
| Type |
Sensor connector |
| Ambient temperature |
-25 - 85°C |
| Coating housing |
Other |
| Coding |
A |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14 - 0.14mm² |
| Connectable conductor cross section multi-wired |
0.14 - 0.14mm² |
| Connectable conductor cross section solid-core |
0.14 - 0.14mm² |
| Connection |
Quick-connect |
| Contact Type |
Other |
| Cross-section (sensor/actuator wiring) |
0.14mm² |
| Degree of protection (IP), mounted |
IP67 |
| Diameter |
1.05mm |
| Diameter connector |
15.942377mm |
| For cable outer diameter |
- - -mm |
| Housing Material |
Other |
| Inflammability class of insulation material according to UL94 |
V0 |
| IP Rating |
IP67 |
| Material of contact surface |
Nickel |
| Material thread ring |
Other |
| Maximum Temperature |
+85°C |
| Min. number of insertion cycles |
100 |
| Min. temperature |
-25°C |
| Misc Attribute |
SACC-FS-12PCON SCO |
| Nominal Current |
1.5A |
| Number of control contacts |
12 |
| Number of data contacts |
0 |
| Number of power contacts |
0 |
| Overvoltage category |
II |
| Pollution degree |
3 |
| Rated current In |
1.5A |
| Rated voltage |
30V |
| Screened |
false |
| Thread size M |
N/A |
| Thread Type |
M12 |
| Type of electric connection |
Insulation piercing connection |
| Type of housing |
Straight |
| Type of locking |
Other |
| With protective conductor |
false |
| With status indication |
false |
