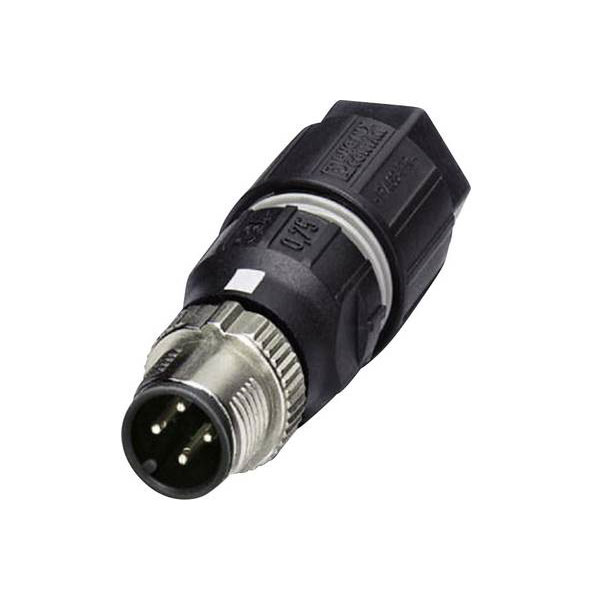

Phoenix Contact 1521591 Sensor/Actuator Plug M12 4-Pin A-Coded Straight

Phoenix Contact manufactures the 1521591 sensor/actuator connector, an M12 plug with a straight design and four pins. This connector is ideal for industrial automation applications, providing reliable connections for sensors and actuators. Its robust construction ensures durability in demanding environments.

Connector 1	M12
Connector 2	Customisable
Type	Sensor connector
Ambient temperature	-25 - 80°C
Coating housing	Other
Coding	A
Conductor Cross Section	0.75mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.34 - 0.75mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.34 - 0.75mm²
Connectable conductor cross section multi-wired	0.34 - 0.75mm²
Connectable conductor cross section solid-core	0.34 - 0.75mm²
Connection	Cut & Clip
Contact Type	Other
Degree of protection (IP), mounted	IP67
Diameter	2.60mm
Diameter connector	18.4mm
For cable outer diameter	4 - 8mm
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
IP Rating	IP65, IP67
Material of contact surface	Nickel
Material thread ring	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-MS-4QO-0,75-M SCO
Nominal Current	4A
Nominal Voltage	250V
Number of control contacts	4
Number of data contacts	0
Number of power contacts	0
Overvoltage category	III
Pollution degree	3
Rated current In	4A
Rated voltage	250V
Screened	false
Thread size M	N/A
Thread Type	M12
Type of electric connection	Insulation displacement connection
Type of housing	Straight
Type of locking	Other
With protective conductor	false
With status indication	false
