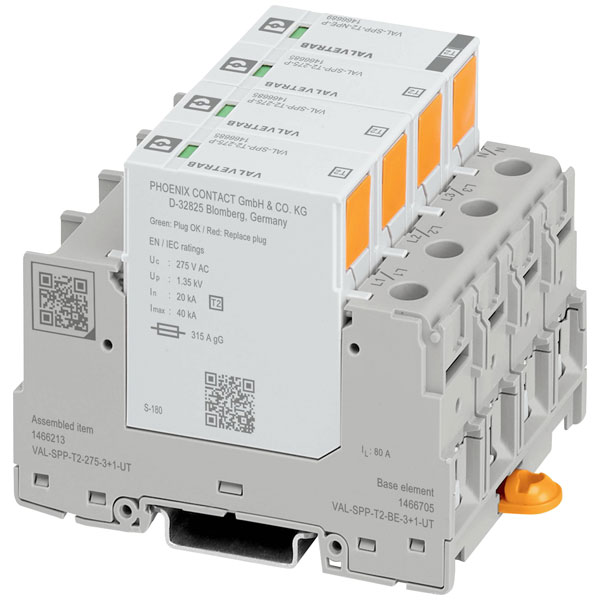

Phoenix Contact 1466213 VAL-SPP-T2 Surge arrester 40kA RJ45 snap-on

The Phoenix Contact 1466213 VAL-SPP-T2-275-3+1-UT surge arrester offers robust surge protection for switchboards, with a capacity of 40 kA. Designed to safeguard electrical installations, this device is ideal for commercial or industrial settings requiring reliable protection. Its compact design ensures easy integration into existing power systems.

Type	Surge arrester
Category type 2	true
Colour	Grey, Grey-white (RAL 7035)
Construction size	Other
Degree of protection (IP)	N/A
Depth	71.5mm
Dim	(W x H x D) 71.2 x 96.6 x 71.5 mm
Height	96.6mm
Integrated backup fuse	true
Integrated short-circuit protection	N/A
Integrated short-circuit protection selective to fuse gG	N/AA
IP Rating	IP20
Leakage Current	40kA
Leakage-current free	false
Max. conductor cross section flexible (fine-strand)	35mm²
Max. conductor cross section solid (solid, stranded)	1.5mm²
Max. continuous voltage AC	275V
Max. continuous voltage DC	N/AV
Max. discharge surge current (8/20)	40kA
Max. overcurrent protection device, parallel connection (fuse)	315A
Max. overcurrent protection device, series connection (fuse)	80A
Max. PV-voltage	N/AV
Mounting method	DIN rail (top hat rail) 35 mm
Nominal discharge surge current (8/20)	20kA
Nominal voltage AC	N/AV
Nominal voltage DC	N/AV
Number of conductors (without earthing)	N/A
Operating Temperature	- 40 - 85°C
Pick-up time (details)	≤ 25ns
Short-circuit breaking capacity (Isccr)	50kA
Signalling at the device	Optical
Surge protection for	Switchboards
System configuration DC	false
System configuration IT	false
System configuration other	false
System configuration TN	false
System configuration TN-C	false
System configuration TN-C-S	false
System configuration TN-S	true
System configuration TT	false
Voltage protection level	1.6kV
Voltage protection level L-N	1.35kV
Voltage protection level N-PE	1.5kV
Width	71.2mm
With remote signalling contact	N/A
