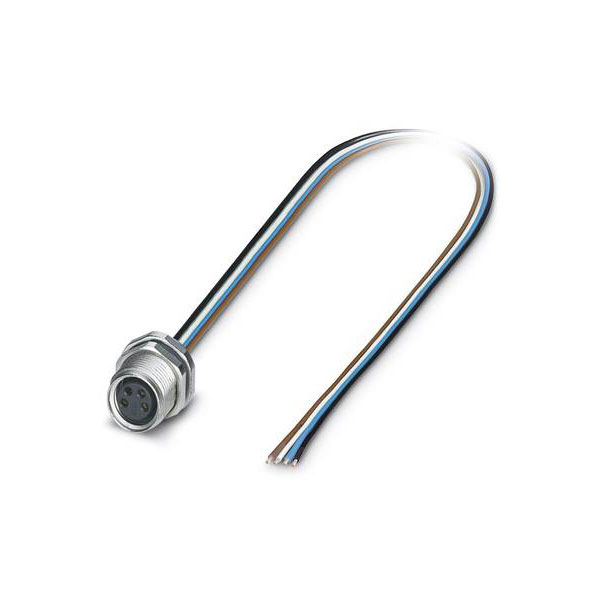

Phoenix Contact 1456093 Flush-Type Socket M8 4-Pos M10 Thread 0.5m Wire

Phoenix Contact's SACC-DSI-M8FS-4CON-M10/0,5 1456093 is a flush-type connector designed for sensor and actuator applications. It features an M8 flush socket with four positions, ensuring a secure and reliable connection in automation systems. Typically used in industrial environments, this connector is ideal for facilitating communications between devices and control systems.

Connector 1	Cable, open end
Connector 2	M8
Colour	Multicolour
Length	0.5m
Type	Sensor connector
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.25mm²
Connection	Open end cable
Core cross section	0.25mm²
Degree of protection (IP), mounted	N/A
Diameter	1.30mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
IP Rating	IP67
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	N/A
Misc Attribute	SACC-DSI-M8FS-4CON-M10/0,5
Mounting method	N/A
Nominal Current	4A
Number of control contacts	4
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	4A
Rated voltage	48V
Screw-in thread	N/A
Thread Type	M8
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Female (bus)
With PE-connection	false
With shield connection	false
