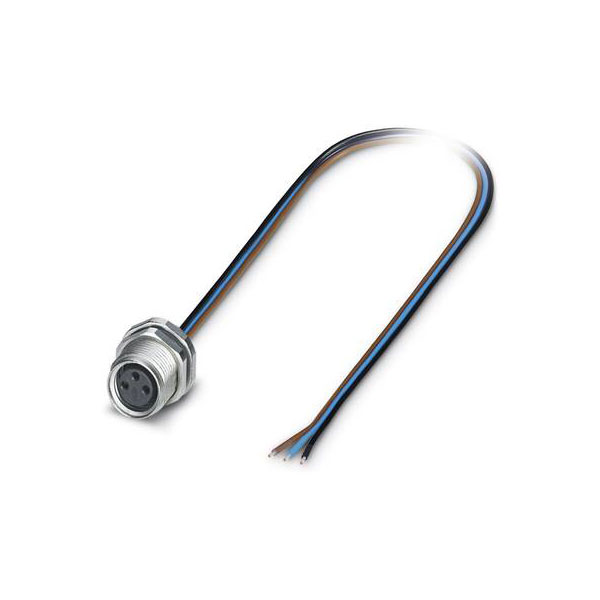

Phoenix Contact 1456080 Connector M8 3-Pin M10 Screw Mount 0.5m Wire

Phoenix Contact manufactures the flush-type connector SACC-DSI-M8FS-3CON-M10/0,5, featuring a durable and compact design suitable for sensor and actuator connections. This M8 flush-type connector offers high reliability and ease of integration in various industrial automation applications. Typical uses include connecting sensors and actuators in machinery and equipment, facilitating seamless communication for process control.

Type	Sensor connector
Number of Contacts	3
Connector Size	M8
Ambient temperature	85 - 85°C
Cable Length	0.5mm
Coating housing	N/A
Coding	A
Conductor Cross Section	0.25mm²
Connection	Open end cable
Connector 1	Cable, open end
Connector 2	M8 socket, built-in
Core cross section	0.25mm²
Degree of protection (IP), mounted	N/A
Diameter	1.30mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
IP Rating	IP67
Length	0.50m
Material	TPE
Material core insulation	Other
Material of contact surface	Other
Min. number of insertion cycles	100
Misc Attribute	SACC-DSI-M8FS-3CON-M10/0,5
Mounting method	N/A
Nominal Current	4A
Number of control contacts	3
Number of Poles	N/A
Number of power contacts	N/A
Operating Temperature	-25 - 85°C
Pollution degree	N/A
Rated current In	4A
Rated voltage	48V
Screw-in thread	N/A
Thread Type	M8
Type of plug-in contact, inner side	None
Type of plug-in contact, outer side	Female (bus)
With PE-connection	false
With shield connection	false
