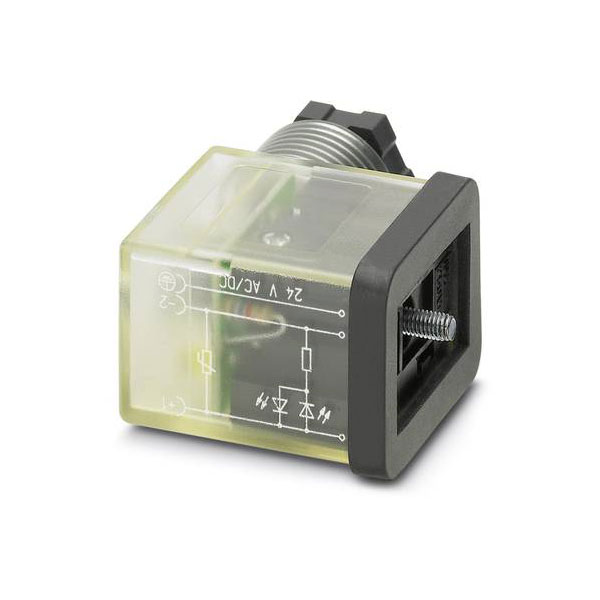

Phoenix Contact 1452233 SACC Valve Connector 3-Pos Bl 1 LED M16 Screw Conn

The Phoenix Contact valve connector SACC-VB-3CON-M16/BI-1L-SV 24V, part number 1452233, is a robust connection solution featuring M16 threading and designed for 24V applications. It is commonly used in industrial automation systems to provide reliable and secure electrical connections to valves. This connector ensures efficient operation in demanding environments, maintaining optimal performance and safety.

Type	SACC-VB-3CON-M16/BI-1L-SV 24V
Connectable conductor cross section	0.25 - 1.5mm²
Degree of protection (IP), mounted	IP65
For cable outer diameter	6 - 8mm
Housing Material	Other
Inflammability class of insulation material according to UL94	HB
Material of contact surface	Other
Min. number of insertion cycles	50
Misc Attribute	SACC-VB-3CON-M16/BI-1L-SV 24V
Number of Poles	3
Operating Temperature	-25 - 60°C
Pollution degree	3
Rated current	1.5A
Rated voltage	24V
With PE-connection	false
With status indication	true
