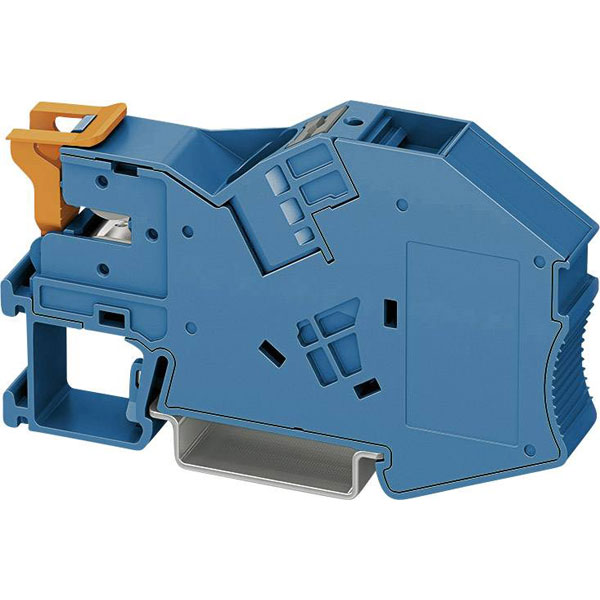

Phoenix Contact 1030131 Terminal Blue Push-in connector 1pc

Phoenix Contact manufactures the 1030131 Terminal, a blue push-in connector designed for efficient wire connections. This switchboard terminal ensures continuity and reliable performance in electrical installations. It is typically used in serial terminal applications, providing a secure connection in various industrial and commercial environments.

Type	Terminal
Termination	Push-in Cage clamp
Width	12.15mm
Wire Gauge (mm²)	16mm²
AWG (min.)	20
Basic colour	Blue
Closing plate required	false
Colour	Blue
Connectable conductor cross section fine-strand with cable end sleeve	0.5 - 16mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 16mm²
Connectable conductor cross section multi-wired	0.5 - 16mm²
Connectable conductor cross section solid-core	0.5 - 25mm²
Connection	Push-in connector
Cross section (flexible) (min.)	0.5mm²
Cross section (inflexible) (min.)	0.5mm²
Current Rating	76A
Depth	46.800138mm
Height	81.899985mm
Inflammability class of insulation material according to UL94	V0
Material insulation body	Other
Maximum Wire Size AWG	4
Mounting method	Other
N function possible	N/A
Nominal Voltage	1000V
Number of potentials	N/A
Number of Rows	1
Operating Temperature	- - -°C
PE-function	false
Rated current In	70A
Rated voltage	1000V
Type of electrical connection 1	Other
Type of electrical connection 2	Other
Wire Gauge (AWG)	4
With N-disconnect slide	N/A
