Phoenix Contact 0719090 Terminal 5.2mm Screws White Corrosion-Proof

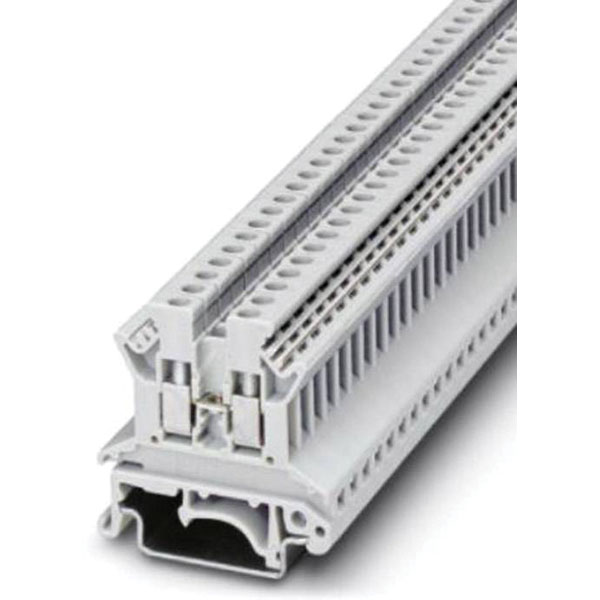

The Phoenix Contact 0719090 is a white UK 2.5 N WH serial terminal that features 5.2 mm screws, designed for ensuring continuity in electrical connections. This switchboard terminal is typically used in electrical panels and switchboards for secure and reliable wiring. Its robust construction makes it suitable for a variety of industrial and commercial applications.

Type	Continuity
Pitch	5.2mm
No. of Ways	2
Termination	Screw
Width	5.2mm
Wire Gauge (mm²)	4mm²
AWG (min.)	24
Clamp width	5.2mm
Closing plate required	true
Colour	White
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 0.25mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 2.5mm²
Connectable conductor cross section multi-wired	0.2 - 1mm²
Connectable conductor cross section solid-core	0.2 - 4mm²
Connection	Screws
Cross section (flexible) (min.)	0.2mm²
Cross section (inflexible) (min.)	0.2mm²
Current Rating	24A
Depth	42mm
Dim	(L x W x H) 42.5 x 5.2 x 42 mm
Explosion-tested version Ex e	N/A
Flammability Rating	V2
Height	42mm
Industrial packaging	No
Inflammability class of insulation material according to UL94	V2
Insulation	PA
Internally connected stages	true
Length	42.5mm
Material insulation body	Other
Maximum Wire Size AWG	12
Misc Attribute	UK 2,5 N WH
Mounting method	DIN rail (top hat rail) 35 mm
Nominal Voltage	800V
Number of clamp positions per level	2
Number of levels	1.0
Number of pins	2
Number of Rows	1
Operating Temperature	-40 - 110°C
Rated current In	24A
Rated voltage	800V
Stripping length (max.)	7mm
Suitable for conductor material	Aluminium/copper
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Wire Gauge (AWG)	12
