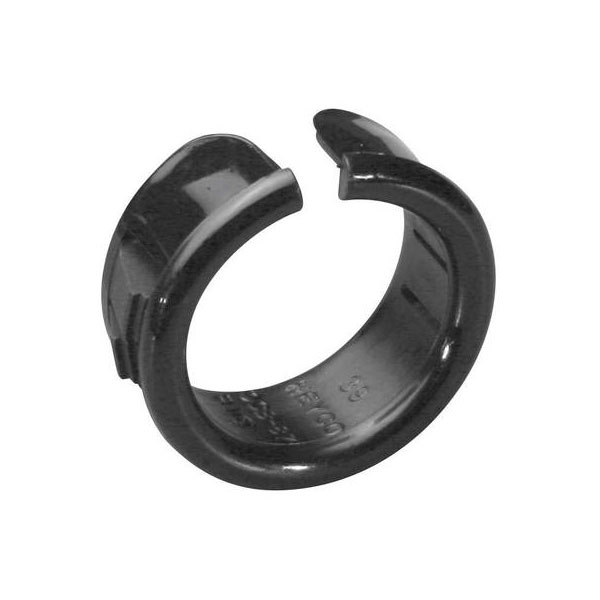

PB Fastener H-2871 Insulated Grommet Dia7.9mm Max 3.2mm Polyamide Black

The PB Fastener H-2871 is an insulated, black polyamide grommet that is open-sided, designed for terminals with a maximum diameter of 7.9 mm and board thickness up to 3.2 mm. Manufactured by PB Fastener, this grommet provides reliable insulation and protection for electrical applications. It is typically used to secure and insulate wiring or components on circuit boards, preventing chafing and damage.

Type	Insulated grommet
Colour	Black
Diameter	7.9mm
Dimensions	(Ø x H) 14.3 mm x 10.3 mm
Halogen-free	No
Height	10.3mm
Material	Polyamide
Maximum Temperature	+105°C
Min. temperature	-30°C
Mounting hole	12.7mm
Panel Thickness	3.2mm
