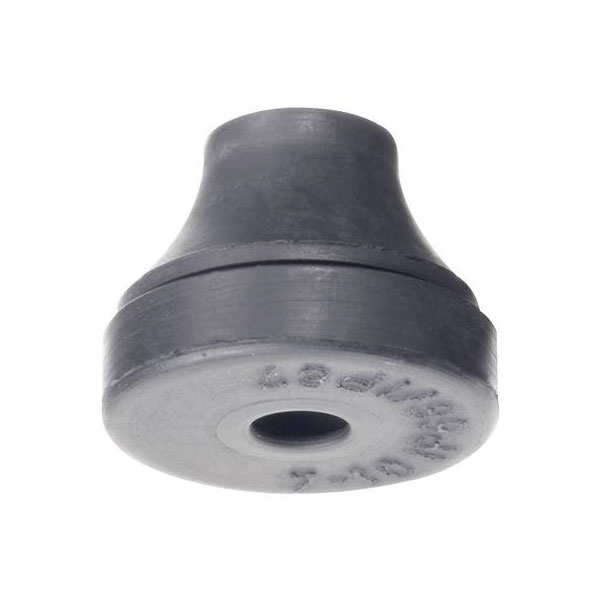

PB Fastener 1204-CR-SW Neoprene Cable Grommet Terminal Dia 20mm Black

Image Representative of Range

PB Fastener 1204-CR-SW Neoprene Cable Grommet Terminal Dia 20mm Black

PB Fastener
Standard range
Order Code:

12-6189

Brand: PB Fastener MPN: 1204-CR-SW EAN-13: 2050000378799
Qty Unit Price (Ex VAT)
1+ £3.48
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
106 in stock, despatched in 4 working days

The PB Fastener 1204-CR-SW cable grommet is a black neoprene component designed for cable mounting. It accommodates terminals with a maximum diameter of 20 mm and is suitable for board thicknesses up to 4 mm. Typical applications include use in managing and protecting cables in electronic assemblies.
Type Cable grommet
(Ø) 39mm
Board thickness (max.) 4mm
Cable diameter (details) 14.0 - 20.0 Amm
Clamp Ø 14mm
Dim (Ø x H) 39 mm x 25.5 mm
Factory colour Black
Halogen-free No
Height 25.5mm
IP rating IP66/67 (tested according to DIN VDE 0470 Part 1/11.92)
Material Neoprene
Material (details) CR (VTD-93)
Min. temperature -30°C
Mounting hole M32
RoHS-compliant Yes
Temperature range -30 - +110°C
Terminal Ø (max.) 20mm
