PB Fastener 1104-CR-SW Cable Grommet Neoprene Dia20mm Black 1 piece

Image Representative of Range

PB Fastener 1104-CR-SW Cable Grommet Neoprene Dia20mm Black 1 piece

PB Fastener
Order Code:

12-6185

Brand: PB Fastener MPN: 1104-CR-SW EAN-13: 2050000378775
Qty Unit Price (Ex VAT)
2+ £2.74
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
75 in stock, despatched in 4 working days

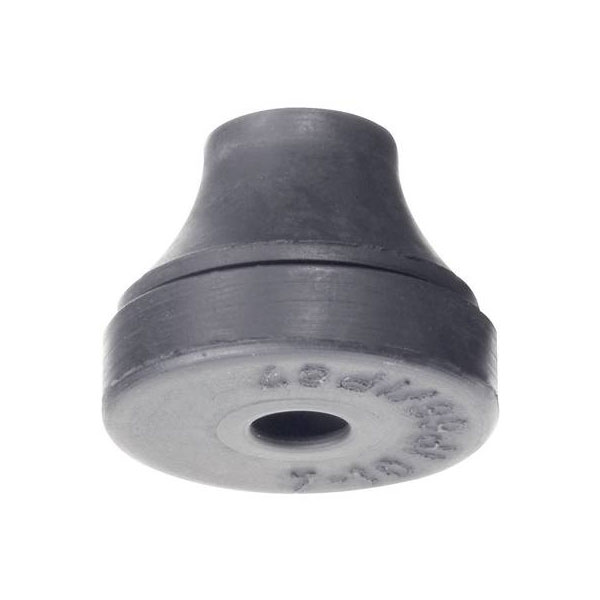

PB Fastener's 1104-CR-SW cable grommet is designed for cable terminals up to 20 mm in diameter and board thickness up to 4 mm. Made from durable black neoprene, it features dimensions of 24.5x6.0x35 mm. This grommet is typically used in cable mounting and bushing applications to provide protective and secure routing for cables.
Colour Black
Cable Diameter Max 14.0 - 20.0mm
Type Cable grommet
Board thickness (max.) 4mm
Clamp Diameter 14mm
Diameter 20mm
Dimensions (Ø x H) 35 mm x 24.5 mm
Halogen-free No
Height 24.5mm
IP Rating IP66/67 (tested according to DIN VDE 0470 Part 1/11.92)
Material CR (VTD-93)
Min. temperature -30°C
Mounting hole PG21
Temperature Range -30 - +110°C
