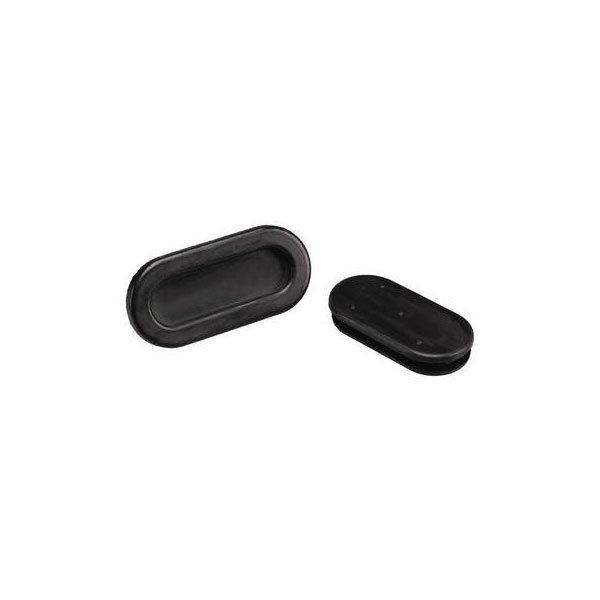

PB Fastener 1098-01 Cable Grommet Ø33mm Max 2.5mm Board Thickness Black

The PB Fastener 1098-01 cable grommet is designed for slotted holes and can accommodate cables with a terminal diameter of up to 33 mm. Made from durable black EPDM, it supports board thicknesses of up to 2.5 mm. Typically used for cable management, it helps in protecting cables from abrasion and ensuring tidy installations.

Type	Cable grommet
Colour	Black
Clamp Diameter	10mm
Diameter	33mm
Dimensions	(L x W x H) 42 x 19 x 7 mm
Halogen-free	No
Height	7mm
Length	42mm
Material	EPDM
Maximum Temperature	+60°C
Min. temperature	-30°C
Misc Attribute 1	Membrane thickness 0.9mm
Panel Thickness	2.5mm
Width	19mm
