Panasonic TX2SA5J TX2SA-5V SMD Relay 5V DC 2A 2 Change-overs 1 Pc

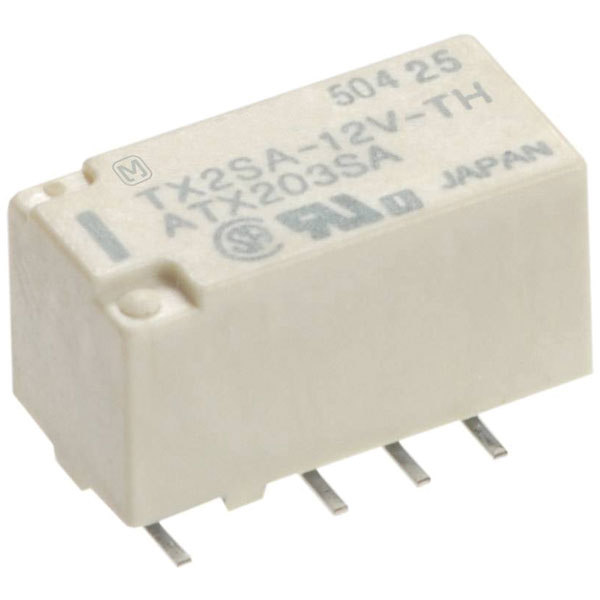

Image Representative of Range

Panasonic TX2SA5J TX2SA-5V SMD Relay 5V DC 2A 2 Change-overs 1 Pc

Panasonic
Standard range
Order Code:

05-7061

Brand: Panasonic MPN: TX2SA5J
Qty Unit Price (Ex VAT)
1+ £2.21
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
99 in stock, despatched in 4 working days

Panasonic's TX2SA-5V SMD relay features a compact design with a 5 V DC operating voltage and a 2 A rating, along with two change-over contacts. This miniature relay is ideal for integration onto printed circuit boards, commonly used in telecommunications and industrial applications. Its SMD format allows for efficient assembly and space-saving in various electronic devices.
Height 8.2mm
Length 15mm
Width 9.4mm
Coil nominal voltage 5V DC
Connection SMD
Contact material Ag + Au
Contact type 2 change-overs
Control mode monostable, 1 coil
Dim (L x W x H) 15 x 9.4 x 8.2 mm
Durability 10 8 switching cycles
Fall time 4ms
Max. switching capacity 60W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute TX2SA-5V
Resistance (coil) 178Ω
Response time 4ms
Switching current (max.) 2A
Switching voltage (max.) 220V AC
Type SMD relay
