Panasonic PM-Y65 Reflective Light Barrier Small Size 5-24V DC Twin Transistor

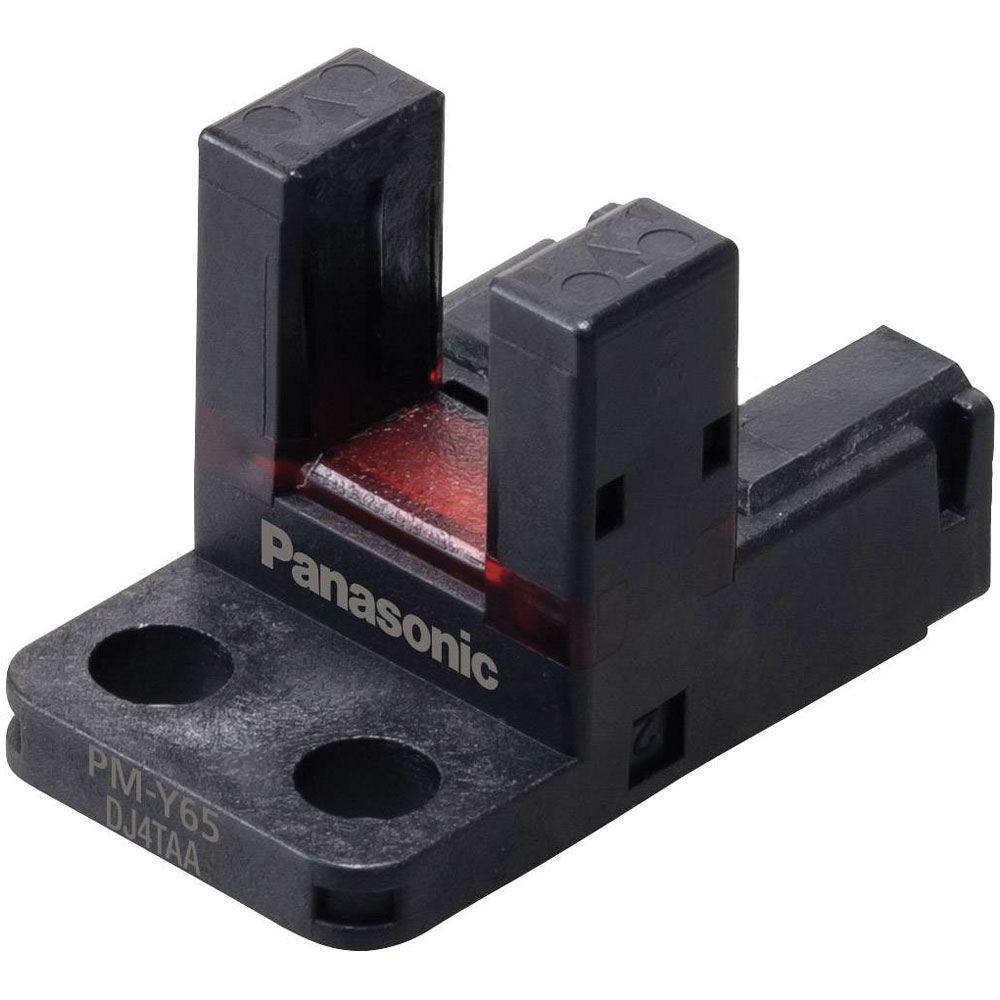

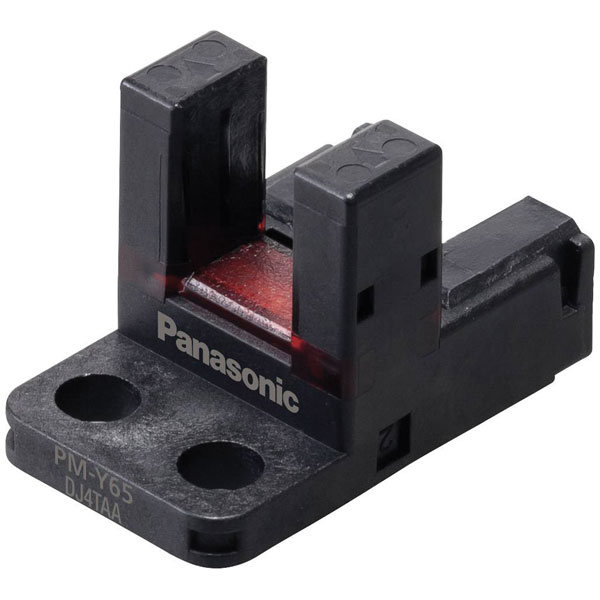

Image Representative of Range

Panasonic PM-Y65 Reflective Light Barrier Small Size 5-24V DC Twin Transistor

Panasonic
Standard range
Order Code:

05-7050

Brand: Panasonic MPN: PM-Y65
Qty Unit Price (Ex VAT)
1+ £25.29
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
293 in stock, despatched in 4 working days

The Panasonic reflective light barrier PM-Y65 operates with a voltage range of 5 - 24 V DC and features both Light-ON and Dark-ON modes. This versatile sensor is commonly used in industrial automation for detecting the presence or absence of objects. It is suitable for applications requiring precise object detection and positioning.
Type Reflective light barrier
Connector Plug (4-pin)
Dim (L x W x H) 13.4 x 14.9 x 22.7 mm
Enclosure material PBT
Height 22.7mm
IP rating IP40
Length 13.4mm
Max. operating voltage 24V DC
Max. temperature +55°C
Min. operating voltage 5V DC
Min. temperature -25°C
Misc Attribute PM-Y65
Model Y
Operating voltage 5 - 24 V DC
Outputs NPN
Transmitter type LED IR
Wavelength 855nm
Width 14.9mm
