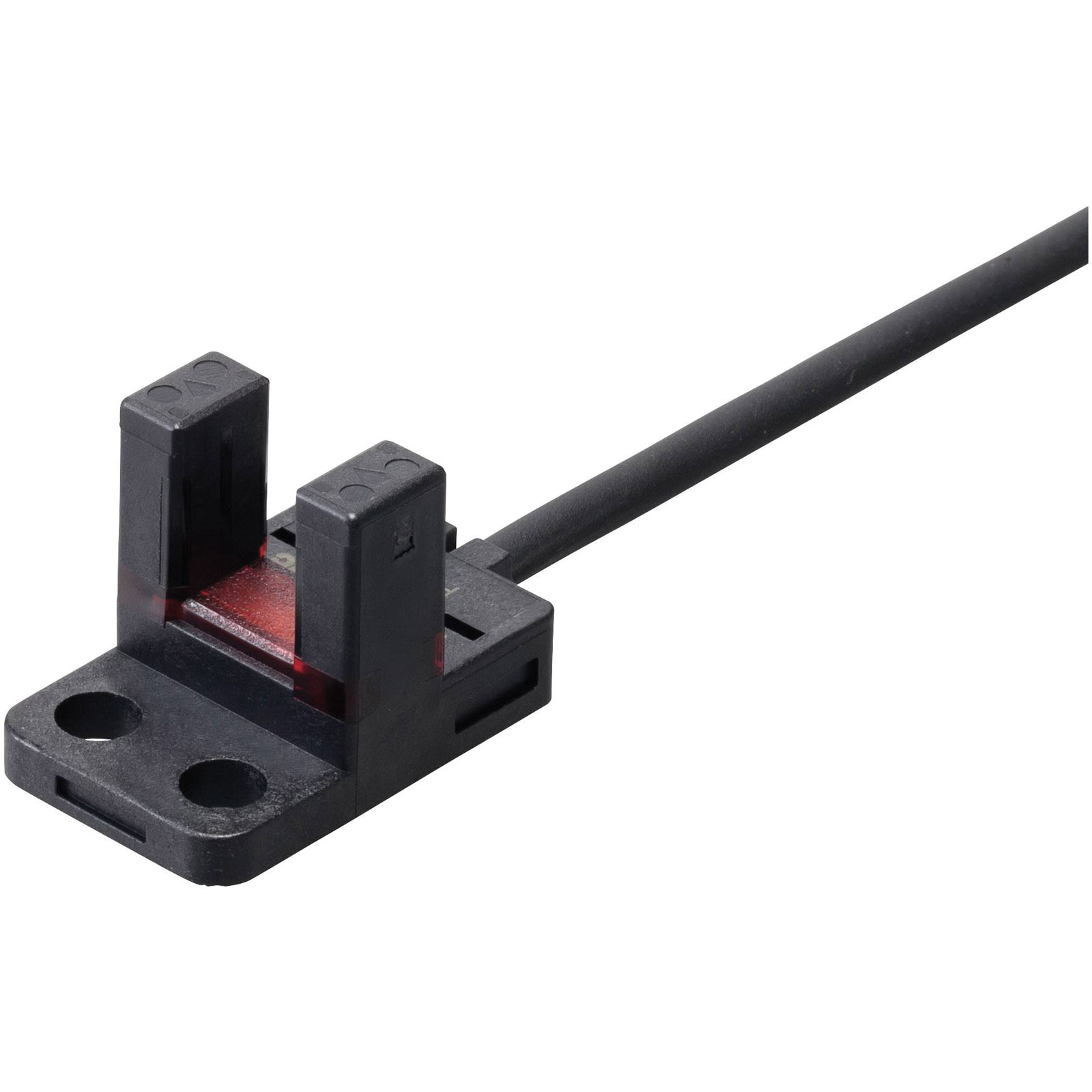

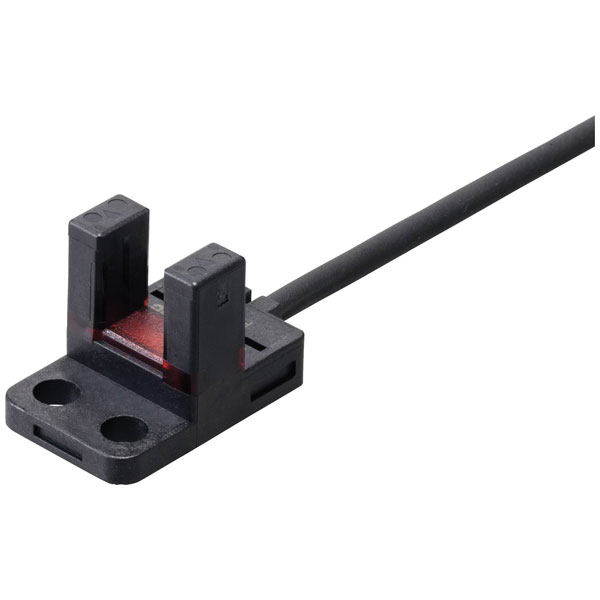

Panasonic PM-Y45 Reflective Light Barrier 5-24V Contactless Switch

The Panasonic PM-Y45 is a reflective light barrier operating with a Light-ON/Dark-ON setting and supports 5 - 24 V DC. Typical applications include object detection and automation systems where reliable sensing is required. Its compact design enables versatile installation in various industrial environments.

Type	Reflective light barrier
Cable Length	1.00m
Connector	Cable, open end
Dim	(L x W x H) 13.4 x 14.6 x 20.6 mm
Enclosure material	PBT
Height	20.6mm
IP Rating	IP64
Length	13.4mm
Max. operating voltage	24V DC
Max. temperature	+55°C
Min. operating voltage	5V DC
Min. temperature	-25°C
Model	Y
Operating Voltage	5 - 24 V DC
Output Type	NPN
Transmitter type	LED IR
Wavelength	855nm
Width	14.6mm
