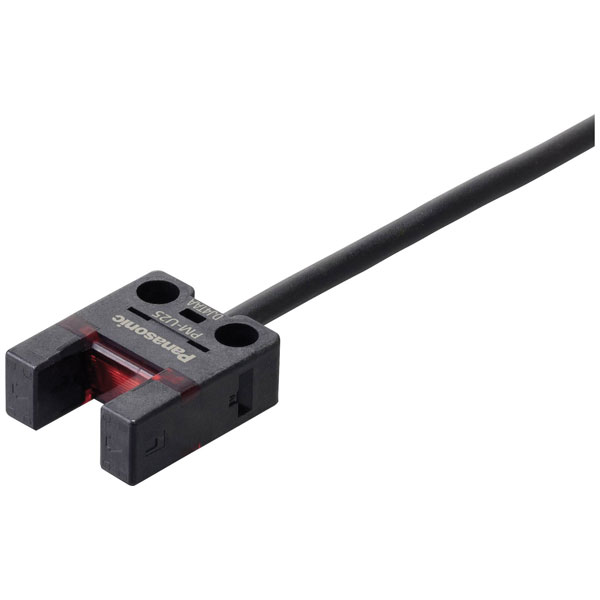

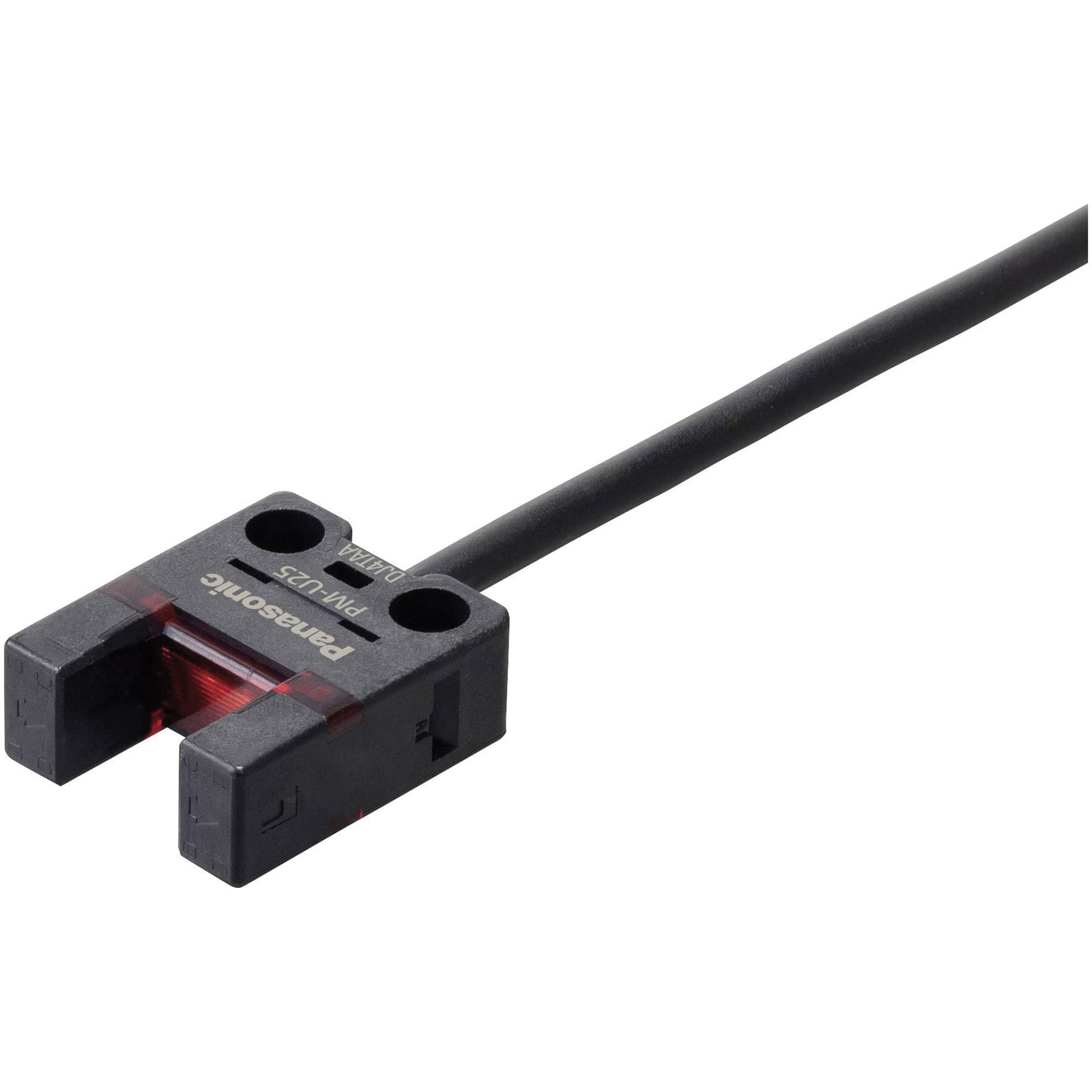

Panasonic PM-U25 Reflective Light Barrier Small Size Fork Light Beam

Image Representative of Range

Panasonic PM-U25 Reflective Light Barrier Small Size Fork Light Beam

Panasonic
Standard range
Order Code:

05-7043

Brand: Panasonic MPN: PM-U25
Qty Unit Price (Ex VAT)
1+ £27.66
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
8 in stock, despatched in 4 working days

The Panasonic PM-U25 is a reflective light barrier designed to operate with a voltage range of 5 - 24 V DC. It features selectable Light-ON and Dark-ON modes for versatile sensing applications. This light barrier is typically used for object detection and counting in automation systems.
Type Reflective light barrier
Cable length 1.00m
Connector Cable, open end
Dim (L x W x H) 13.4 x 6 x 16 mm
Enclosure material PBT
Height 16mm
IP rating IP64
Length 13.4mm
Max. operating voltage 24V DC
Max. temperature +55°C
Min. operating voltage 5V DC
Min. temperature -25°C
Misc Attribute PM-U25
Model U
Operating voltage 5 - 24 V DC
Outputs NPN
Transmitter type LED IR
Wavelength 855nm
Width 6mm
