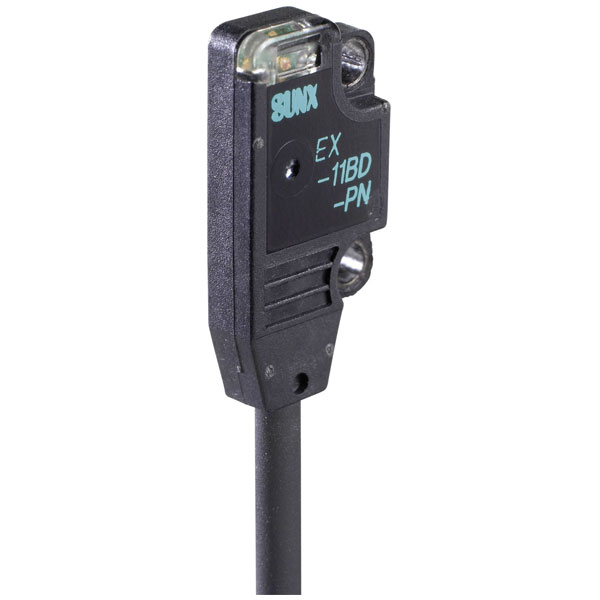

Panasonic EX11BPN One-way Barrier: Fast Flat Design Red LED 0.5ms Response

The Panasonic EX11BPN is a one-way light barrier designed for front Dark-ON detection. It is ideal for applications requiring precise object sensing and reliable presence detection. Typically used in automation and industrial settings, it ensures accurate monitoring and control.

Type	One-way light barrier
IP Rating	IP67
Cable Length	2.00m
Connector	Cable, open end
Depth	14.5mm
Dim	(W x H x D) 3.5 x 10 x 14.5 mm
Functions	Dark-ON
Height	10mm
Max. operating voltage	24V DC
Max. Range	0.15m
Maximum Temperature	+55°C
Min. operating voltage	12V DC
Min. temperature	-25°C
Model	Front
Operating Voltage	12 - 24 V DC
Output Type	PNP
Response Time	0.5ms
Width	3.5mm
