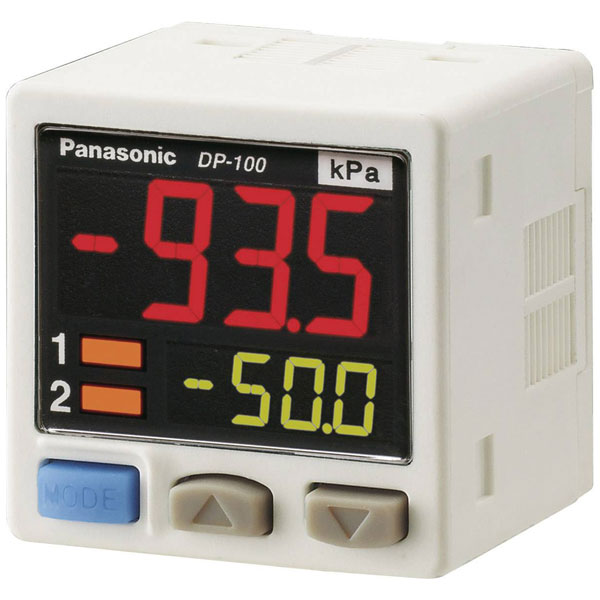

Panasonic DP-111-E-P-J Pressure Sensor -1 to 1 bar Mini 3-Colour LCD

Panasonic
Order Code:

05-6884

Brand: Panasonic MPN: DP-111-E-P-J EAN-13: 2050003964876
Qty Was Unit Price (Ex VAT)
1+ £222.89 £140.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 11 weeks

The Panasonic DP-111-E-P-J pressure sensor measures air pressure from -1 bar to 1 bar with compact dimensions of 42.5 x 30 x 30 mm. This M8 (4-pin) sensor is ideal for precise pressure monitoring in industrial applications. It functions effectively in systems requiring accurate force detection, such as barosensors and pascal sensors.
Connector M8 (4-pin)
Dim (L x W x H) 42.5 x 30 x 30 mm
Height 30mm
IP Rating IP40
Length 42.5mm
Max. operating voltage 24V DC
Max. temperature +55°C
Min. operating voltage 12V DC
Min. temperature -10°C
Model Relative pressure
Operating Voltage 12 - 24 V DC
Outputs PNP
Pressure reading range -1 bar up to 1 bar
Pressure reading range (max.) 1bar
Pressure reading range (min.) -1bar
Type Pressure sensor
Width 30mm
