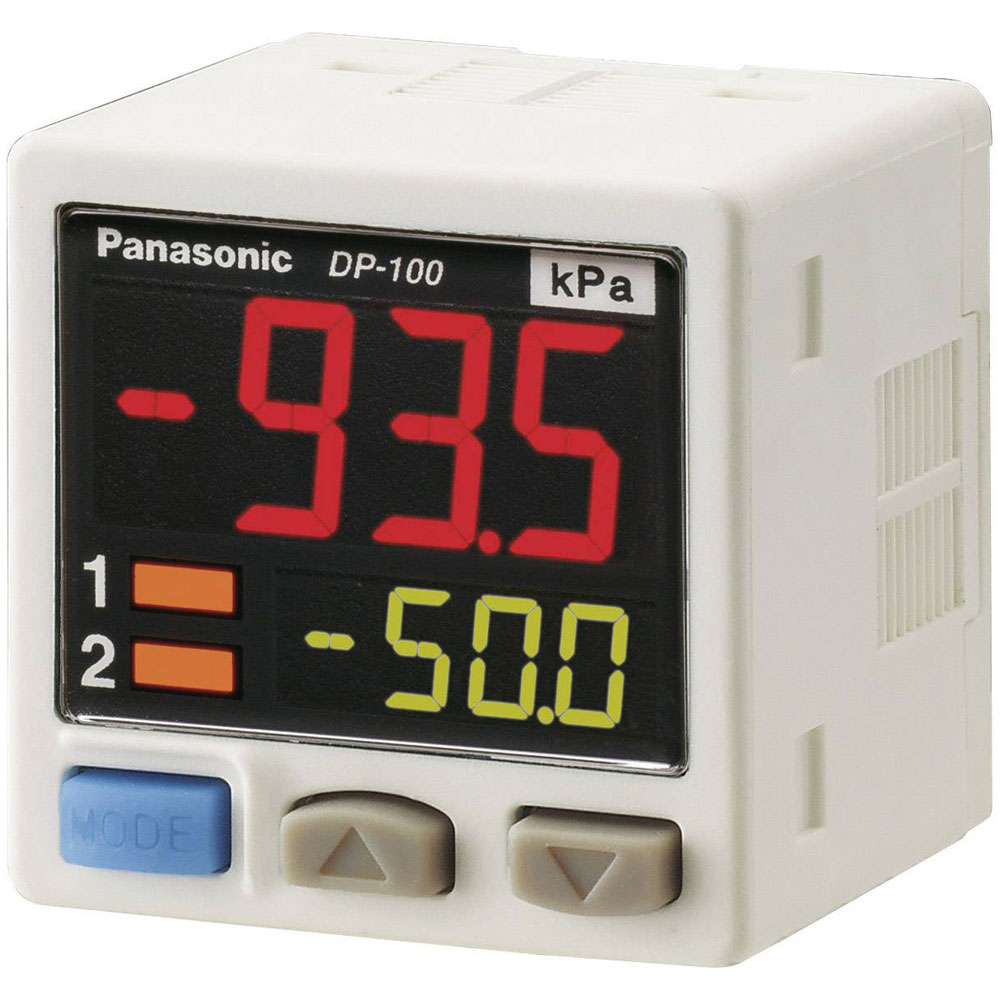

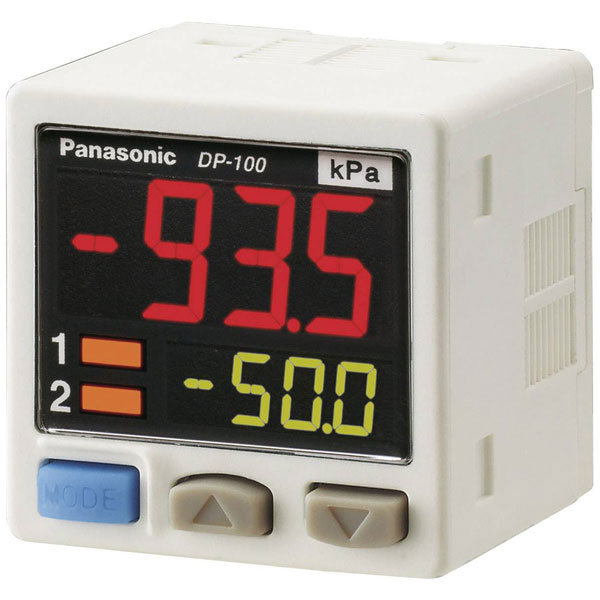

Panasonic DP-102 Sensor Pressure Range -1 to 10 bar Dual-LCD Mini Design

Panasonic's DP-102 pressure sensor measures air pressure ranging from -1 bar to 10 bar with dimensions of 42.5 x 30 x 30 mm. Key attributes include cable with open end connectivity, ensuring easy integration into various systems. It is typically used in applications requiring precise pressure detection, such as industrial automation and pneumatic systems.

Type	Pressure sensor
Connector	Cable, open end
Dim	(L x W x H) 42.5 x 30 x 30 mm
Height	30mm
IP Rating	IP40
Length	42.5mm
Max. operating voltage	24V DC
Maximum Temperature	+55°C
Min. operating voltage	12V DC
Min. temperature	-10°C
Model	Relative pressure
Operating Voltage	12 - 24 V DC
Outputs	NPN
Pressure reading range	-1 bar up to 10 bar
Pressure reading range (max.)	10bar
Pressure reading range (min.)	-1bar
Width	30mm
